Mining and sand processing equipment supplied by Qingzhou Mingxu Supply Chain covers the main stages of ore crushing, screening, washing, and solid waste treatment. The Mining Equipment is used in stone plants, sand aggregate production lines, infrastructure material processing, and mine site operations. It processes raw stone, mine ore, and tailings into sized sand and aggregate products. The company offers both single machines and complete production line configurations for domestic and overseas projects.
The following table lists the primary equipment categories and their functions in a typical sand and aggregate processing line.
| Equipment Type | Main Function | Typical Application |
|---|---|---|

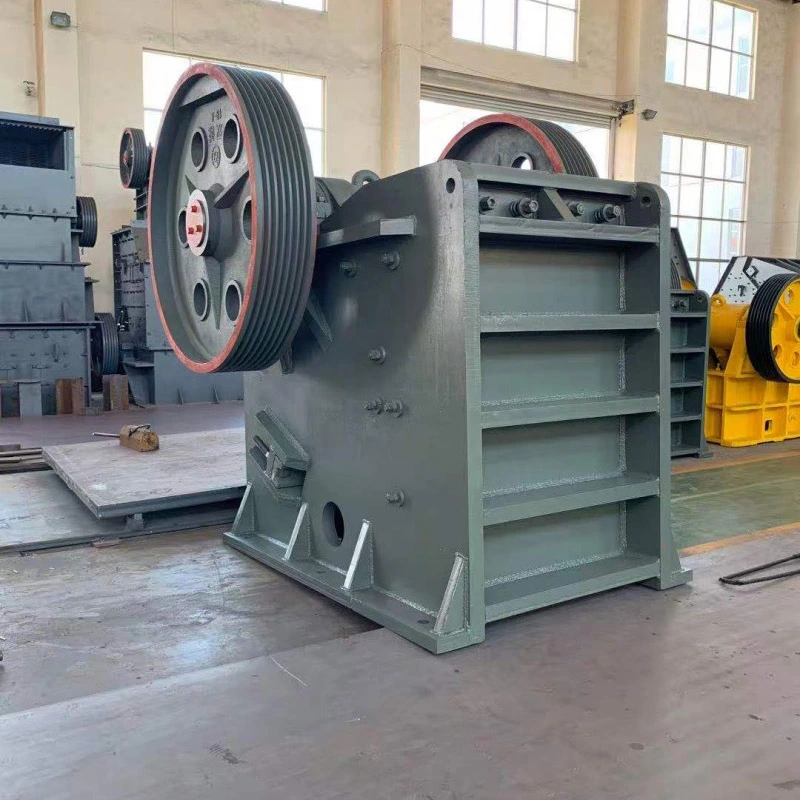

| Jaw crusher | Primary crushing of large raw stones and ores | Mine primary crushing, stone plant rough processing, construction waste crushing |

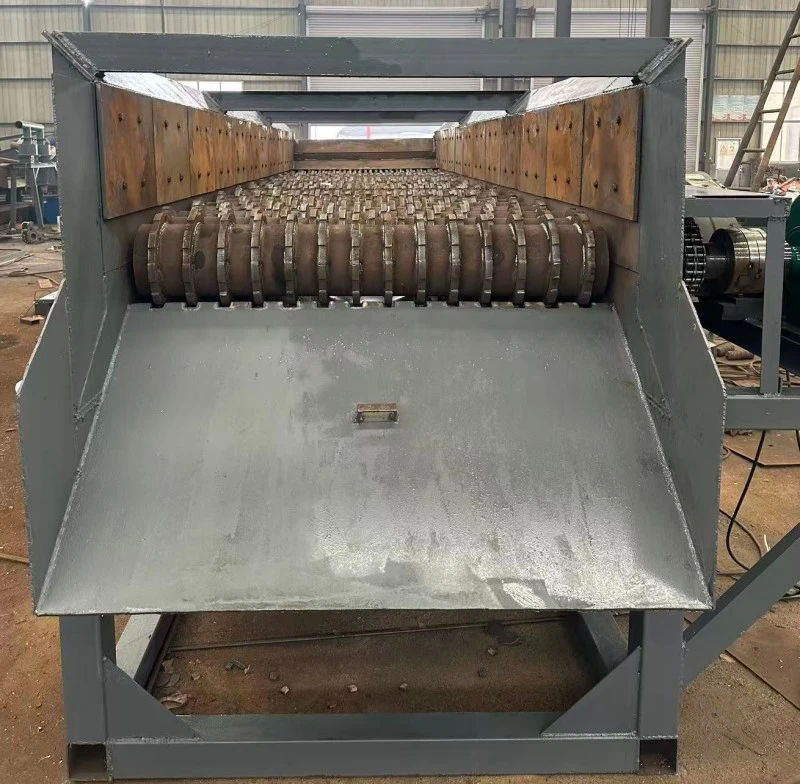

| Soil-stone separator | Removes soil, clay, and fine impurities from mixed raw material | Pre-screening for high-mud materials, improving downstream efficiency |

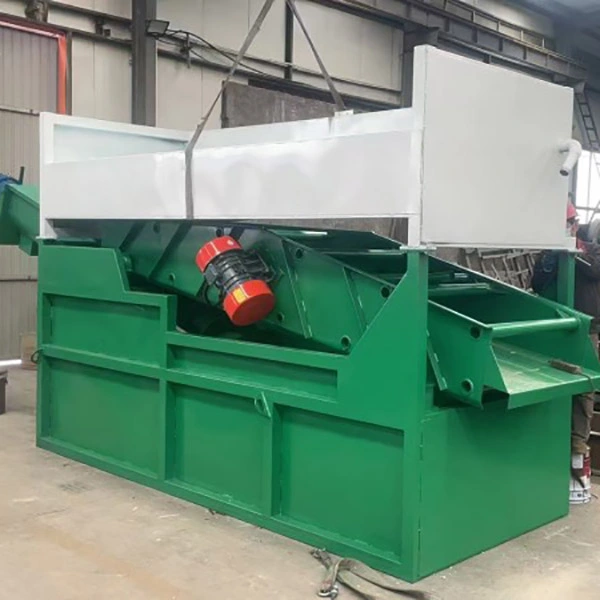

| Sand screening equipment | Classifies crushed material into different particle sizes | Ore grading, aggregate screening, finished product classification |

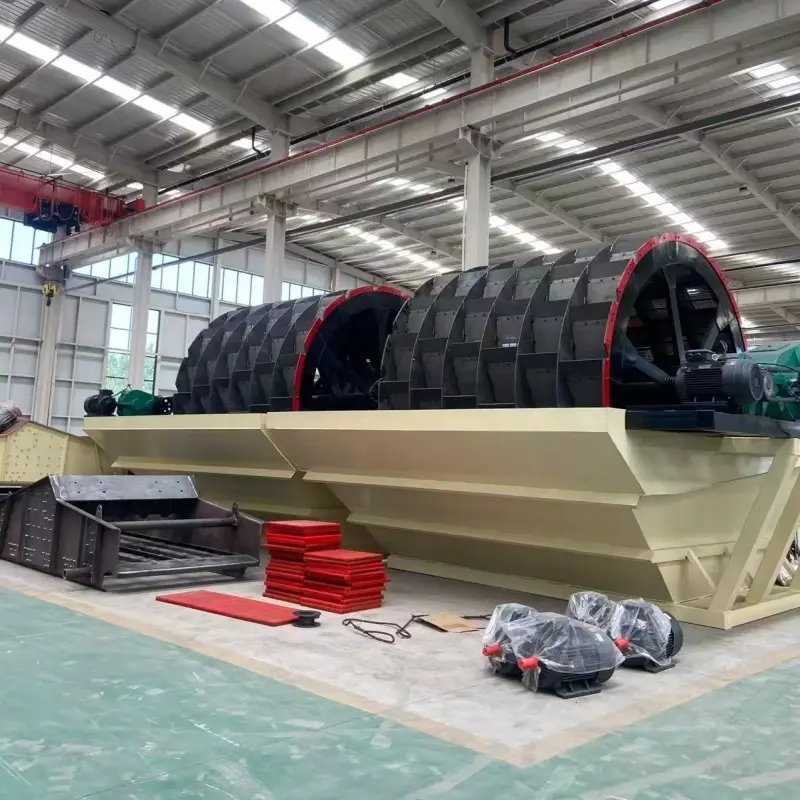

| Sand washing equipment | Removes soil, dust, and impurities from sand surface | Manufactured sand washing, river sand cleaning, aggregate purification |
A complete sand processing line can be arranged by combining the above equipment according to raw material condition and required output. A typical configuration includes a jaw crusher for primary crushing, a soil-stone separator for removing clay and mud, screening equipment for size classification, and sand washing equipment for final cleaning. Mobile or fixed layouts can be selected depending on site conditions and project duration. The modular design allows capacity adjustment and easy replacement of individual units.
The Mining Equipment is built with reinforced structures and wear-resistant liners at key contact points to handle abrasive materials. Screening efficiency is maintained through high-frequency vibration and anti-clogging screen designs. Sand washing units use water flushing and sedimentation to improve sand purity and reduce mud content. These features support continuous operation and help lower the frequency of unscheduled downtime.
Qingzhou Mingxu Supply Chain Co., Ltd. is based in Qingzhou City, Shandong Province. The company holds qualifications in supply chain management, full-category machinery sales, and import/export. It works with selected manufacturers to supply mining and sand processing equipment for single-unit orders, complete production lines, or turnkey projects. Depending on stone hardness, discharge particle size, and required capacity, the company can provide a basic equipment layout and configuration proposal after receiving a description of the project.
Q1: How do I choose between a mobile and a fixed crushing line?
A1: A fixed line is usually selected for long-term production at one site, while a mobile line is more suitable for temporary projects or sites that require frequent relocation. Mobile units can be equipped with diesel engines for areas without stable electricity supply. The final choice depends on project duration, site access, and power availability.
Q2: What should I do if my raw material contains a lot of clay?
A2: A soil-stone separator should be placed before the screening or crushing stages. It removes clay and sticky soil from the feed, which helps prevent blockage in screens and crushers. For very high clay content, the separator can be configured with a larger disc gap or slower speed to improve cleaning effect.
Q3: How often do wear parts need replacement in a typical production line?
A3: Replacement frequency depends on the abrasiveness of the material and daily operating hours. Jaw crusher plates and screen meshes are the most common wear parts. Under normal conditions, jaw plates may last several months, while screen mesh life varies with material hardness. It is recommended to keep a set of spare parts on site for continuous operation.
Q4: Can the equipment be customized for different output capacities?
A4: Yes. The crusher model, screen size, and washing unit capacity can be matched to the target production rate. A brief description of the material type, feed size, and desired output will help in proposing a suitable configuration.
Q5: Do you provide installation and commissioning support for overseas projects?
A5: For complete production lines or bulk orders, commissioning assistance can be arranged. Engineers can supervise installation, test the equipment, and train local operators. For single-machine orders, detailed manuals and video instructions are provided, and remote technical support is available.
