We offer a comprehensive one-stop sourcing solution across construction machinery, agricultural and forestry equipment, marine and power systems, hydraulic components, and new energy devices, all customizable to meet diverse project needs.

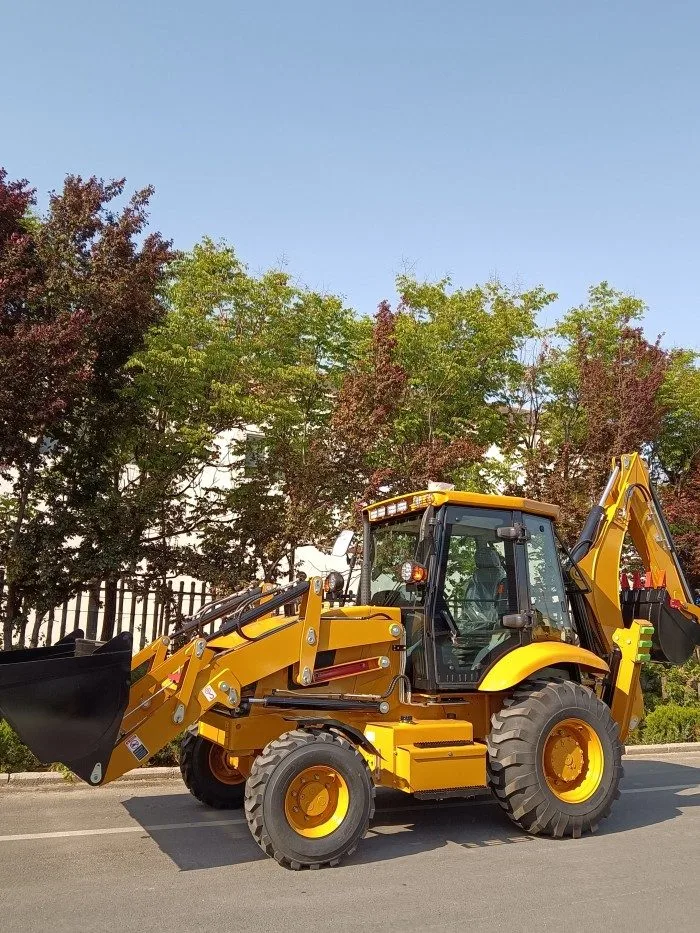

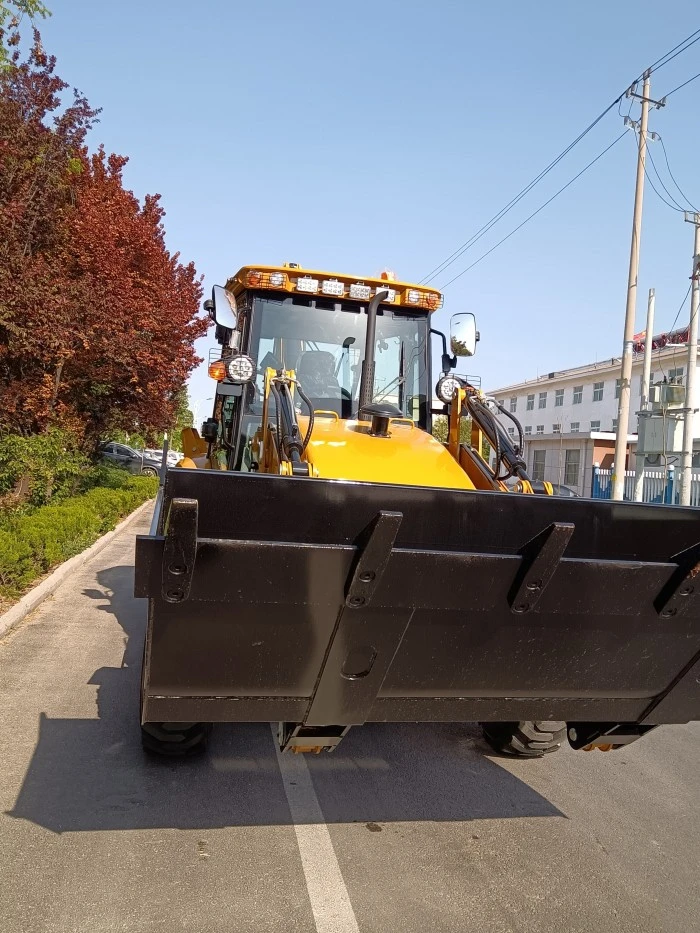

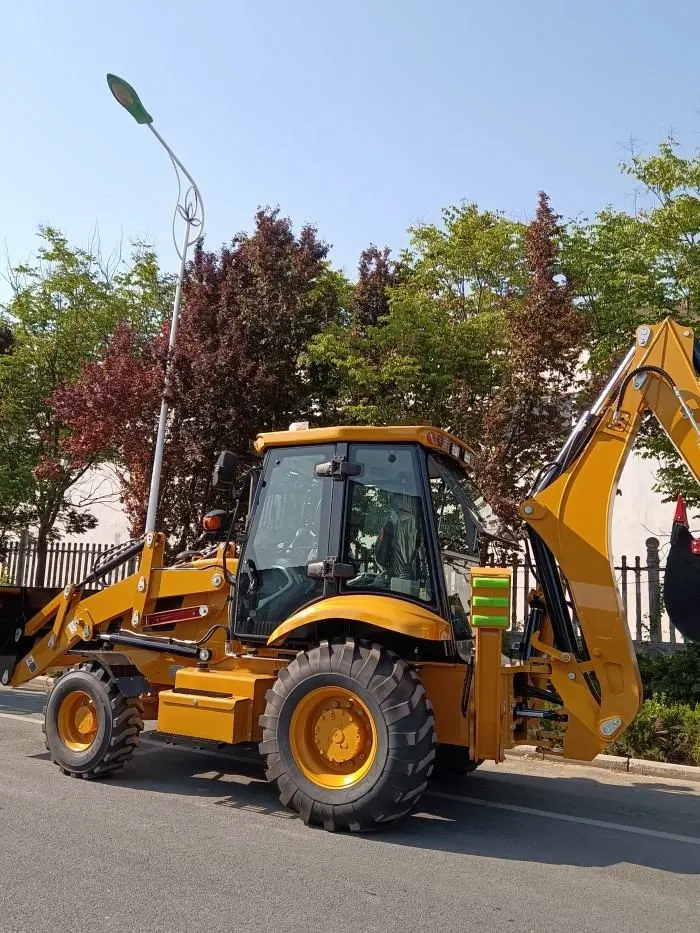

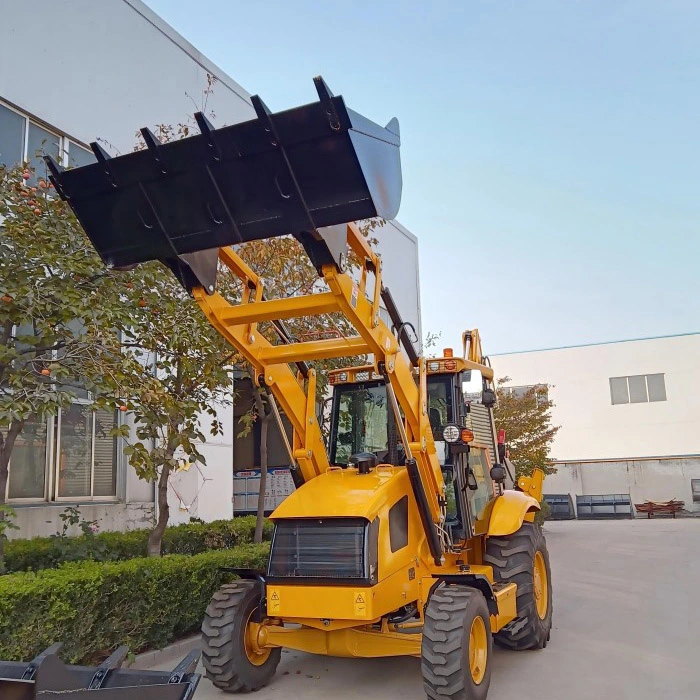

Qingzhou Mingxu Supply Chain Co., Ltd. supplies the Standard 3CX Backhoe Loader, a multifunctional machine for digging and loading. It is designed for municipal construction, infrastructure projects, farmland improvement, site leveling, and similar tasks, with the ability to handle digging, loading, bulldozing, and ditching in one unit.
The machine uses a reliable power and hydraulic system, providing adequate output, straightforward operation, and moderate fuel consumption. Attachments can be swapped quickly to suit different jobs. The unit is available for bulk orders and export, and is intended for contractors and businesses that need a practical machine for daily construction work.
| Item | Description |
|---|---|
| Machine Type | Standard 3CX backhoe loader |
| Control System | Hydraulic pilot control |
| Maximum Road Speed | 30 km/h |
| Operator Seat | 180° swivel for loading/digging mode switch |
| Optional Attachments | Six-in-one bucket, hydraulic breaker, log grapple |
1. Multifunctional integration. Loading, digging, bulldozing, and ditching are combined in a single machine, covering common earthmoving tasks without the need for additional equipment.
2. Compact site adaptability. The 180° swivel seat and smaller footprint allow operation in narrow lanes, farm plots, and confined work areas where full-size machines are difficult to use.
3. Stable hydraulic performance. The hydraulic pilot control delivers steady power and smooth composite movements, suitable for continuous daily operation.
4. Lower maintenance requirements. The design uses widely available parts and simple service procedures, which helps reduce downtime and repair expense.
5. Bulk supply and customization. The model is available for full-container export and large-volume orders. Configuration and attachments can be adjusted for specific markets.
1. Municipal road and pipeline work: pavement repair, drainage and cable trenching, sidewalk leveling, and debris transport; the compact size works well in older urban areas with narrow streets.
2. Rural and urban infrastructure: house foundation digging, irrigation channel construction, rural road widening, and backfilling for small projects.
3. Agriculture and livestock operations: orchard trenching, feed handling, manure cleaning, and farmland preparation.
4. Landscaping and green space maintenance: tree pit digging, slope shaping, green waste removal, and small water channel cleaning.
5. Sand and aggregate yards: loading and stockpiling of sand and stone, short-distance transfer, and yard leveling.
6. Small-scale mining and tunneling support: shallow excavation, residue clearing, and internal material movement.
7. Equipment rental use: suitable for short-term jobs on small and medium sites; one unit can replace two separate machines, lowering transport and operating cost.
8. Emergency and recovery tasks: landslide backfilling, ditch dredging after flooding, and road obstruction removal.
The Standard 3CX Backhoe Loader provides power to the hydraulic system, which controls travel, loading, and digging movements. The hydraulic pump generates oil pressure, and the control valves direct flow to the loader boom, backhoe arm, bucket, and travel mechanism. This allows the machine to perform bulldozing, shoveling, digging, and ditching. Hydraulic pilot controls provide smooth and responsive operation.
1. Pre-operation inspection: Walk around the machine and check tire wear, hydraulic hose condition, and bucket tooth wear. Verify engine oil, diesel, and hydraulic oil levels. Test the parking brake, working lights, hydraulic outriggers, and emergency stop button.
2. Startup and mode switching: Fasten the seat belt. Rotate the seat forward to operate the loader. Insert the key and complete the electric self-check before starting the engine. Rotate the seat 180° backward to switch to backhoe pilot controls.
3. Shutdown procedure: Fully retract the digging arm and raise the outriggers. Lower the loader bucket to the ground. Let the engine idle for 3 minutes to cool the hydraulic and power systems. Turn off the engine, cut off main power, and lock the cab before leaving.
The complete unit carries a warranty of 12 months or 1,000 working hours, whichever occurs first. Major components such as the engine, main hydraulic pump, and transmission are covered for 6 months. Failures caused by manufacturing defects will be repaired at no charge with original parts. Damage due to improper use, overloading, or missed maintenance will be charged at parts cost only. Transport costs and replacement labor are the customer's responsibility. Wear items are not included.
Q1: What is the maximum road speed of the standard 3CX model?
A1: The standard 3CX backhoe loader has a maximum road speed of 30 km/h.
Q2: Can the machine and attachments be customized for full-container bulk orders?
A2: Yes. Qingzhou Mingxu Supply Chain can adjust configurations according to target markets. Attachments such as six-in-one buckets, hydraulic breakers, and log grapples are available as options.
