Heavy Duty Backhoe Loader

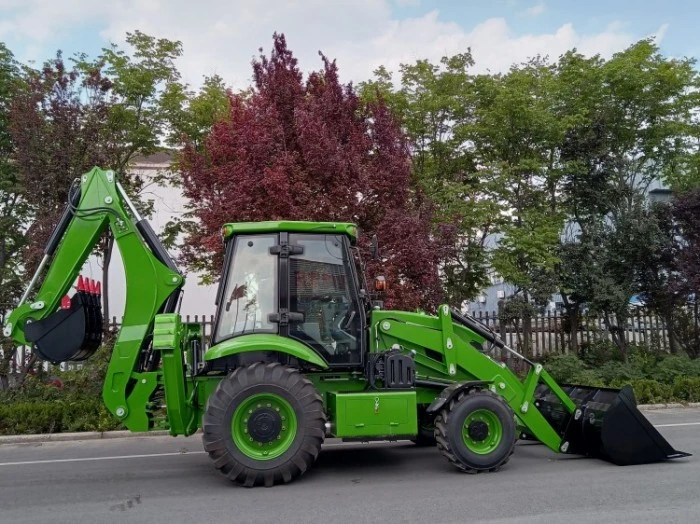

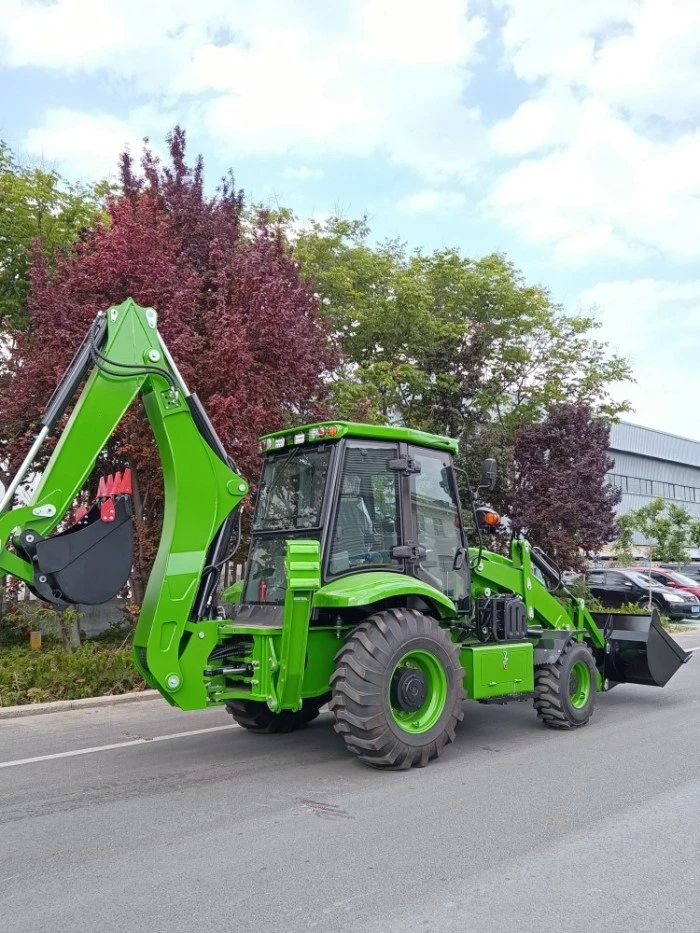

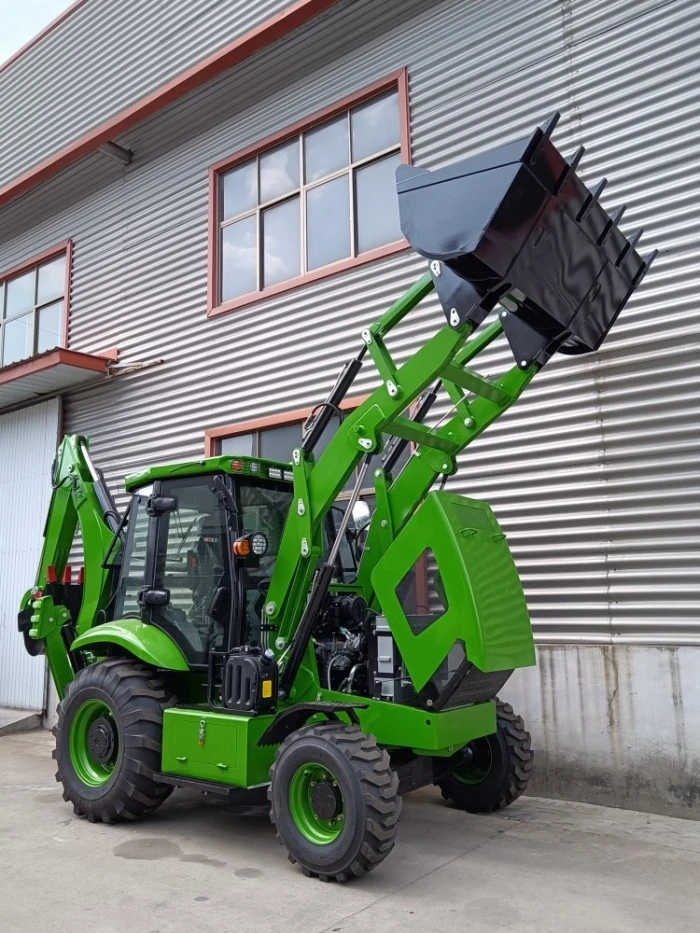

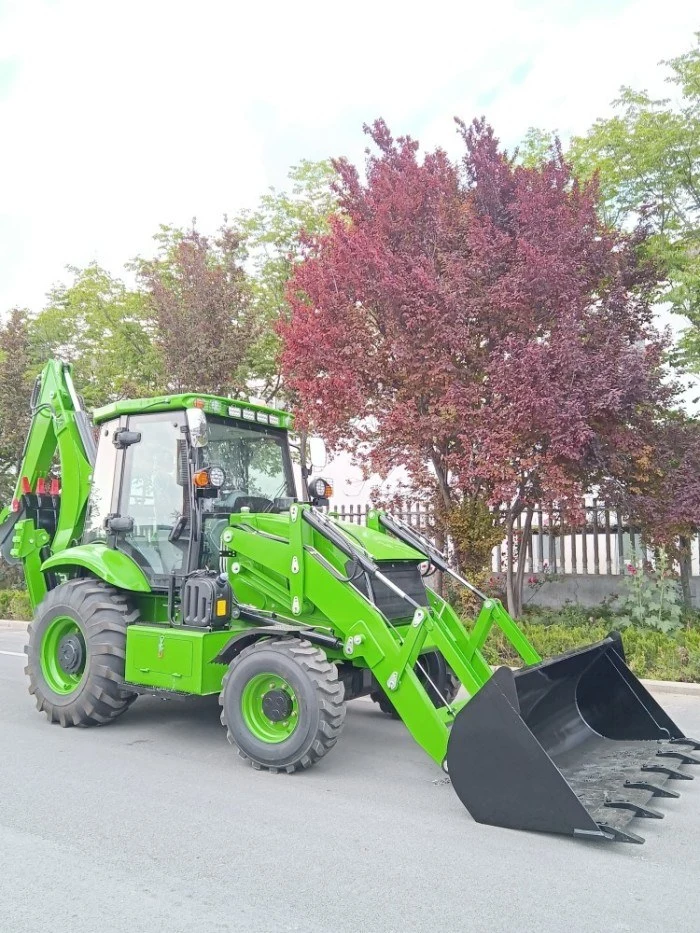

Qingzhou Mingxu Supply Chain offers a range of new Heavy Duty Backhoe Loader for earthmoving, loading, and general construction tasks. The lineup includes mini, medium, and heavy-duty models, each built around a front loader and rear backhoe configuration.

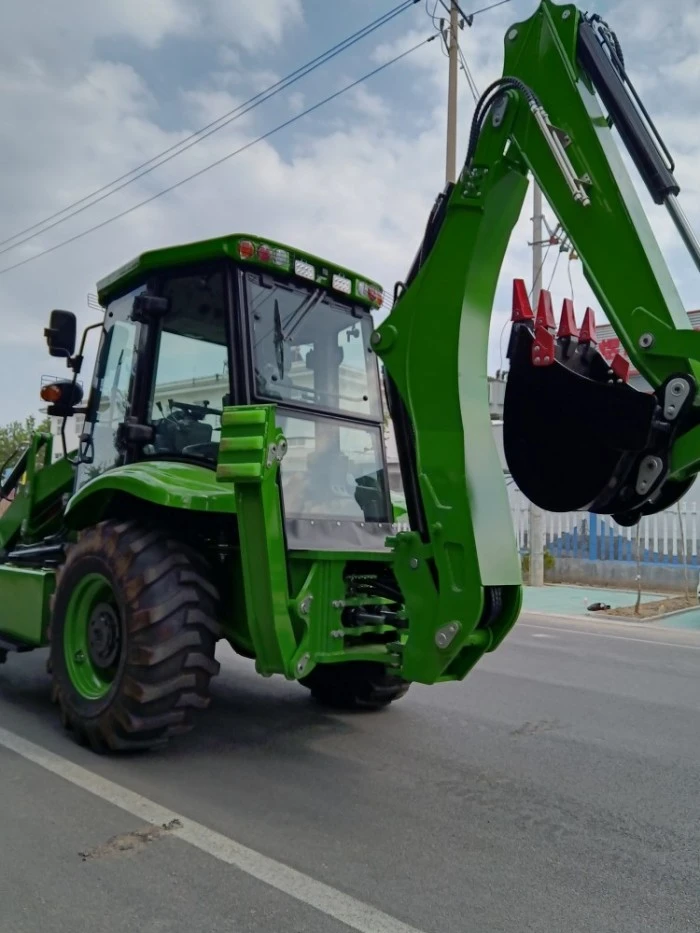

A 360° swivel seat in the cab allows a single operator to switch between digging and loading positions without leaving the machine. Various attachments can be fitted, including hydraulic breakers, log grapples, 4-in-1 buckets, and dozer blades. Digging depth, discharge height, and bucket capacity can be selected to match site requirements.

Configuration Summary

Operating Mechanism

The machine uses a full hydraulic system powered by the engine. Separate valve groups control the front loader and rear backhoe circuits independently. Hydraulic cylinders operate the front bucket and boom for loading and leveling, while the rear assembly extends and pivots to perform excavation, backfilling, and material handling. The operator can switch between the two working ends by rotating the seat, without leaving the cab.

Operating Instructions

1. Pre-start inspection: Check tire condition, hydraulic hoses, and bucket teeth. Verify engine oil, hydraulic oil, and diesel levels. Test stabilizer legs, lights, brakes, and emergency stop.

2. Startup and mode switch: Fasten the seat belt. Face the front loader to start the engine and operate the loader controls. Rotate the seat backward to use the backhoe pilot joysticks.

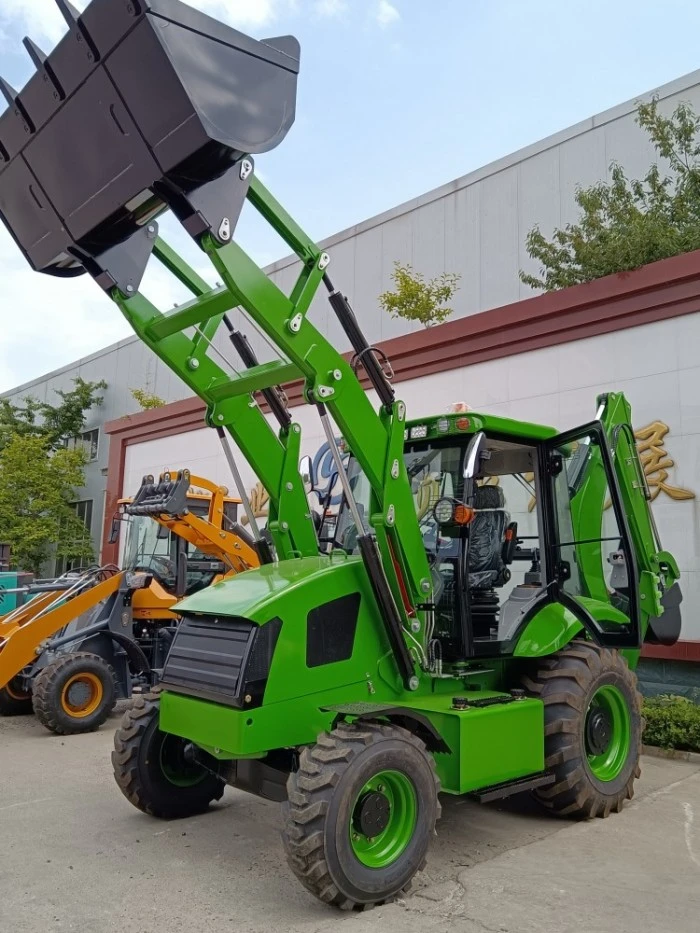

3. Loading: Level the bucket to cut into the material pile, raise the boom for transport, and tip the bucket to unload. Keep the boom low and bucket level during movement.

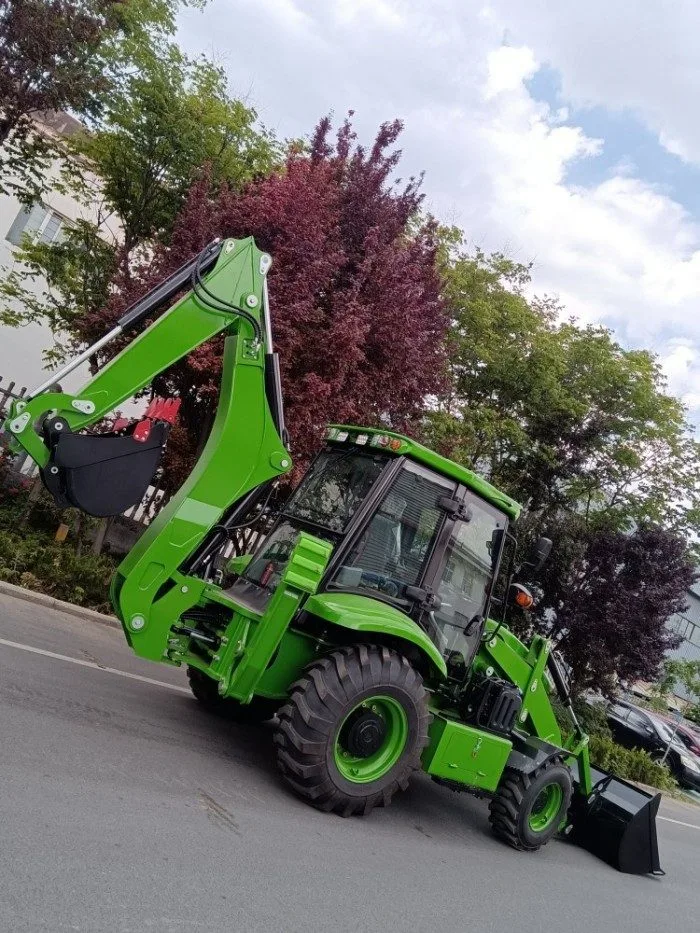

4. Digging: Park on stable ground and lower the hydraulic stabilizers. Use the pilot joysticks to control the backhoe arm for trenching or foundation work. Swing the loaded bucket to the dump area.

5. Shutdown: Retract the backhoe arm and stabilizers, lower the bucket to the ground, and idle the engine for about 3 minutes before switching off. Lock the cab after power is cut.

6. Emergency: If hydraulic leakage, abnormal engine noise, or stabilizer failure occurs, stop the machine immediately and arrange for inspection.

Performance Characteristics

1. Dual-function design. The combination of a front loader and rear backhoe allows one machine to handle digging and loading tasks, reducing the number of machines needed on a site.

2. Hydraulic pilot controls. Joystick operation is light and responsive. The rotating seat enables quick switching between working modes, which helps reduce operator fatigue during long shifts.

3. Adaptable to various conditions. Hydraulic extendable outriggers and a range of attachments allow the machine to handle earthmoving, rock breaking, and log handling tasks on different ground types.

4. Flexible procurement. Machines are supplied directly from the factory, with options for single-unit purchase, bulk distribution orders, and full-container export. Long-term supply arrangements can be discussed.

Modular Machine Matching Technology

To fit different site requirements, the backhoe loader is built with a modular approach that allows key working parameters to be adjusted during production. Digging depth is determined by the backhoe boom and dipper arm length, which can be specified in several standard configurations or extended for deeper trench work. Discharge height is matched to the loader boom geometry, and the bucket capacity can be selected from a range of sizes based on the density of the material being handled and the required cycle output.

These parameters are matched at the factory according to the customer's application description. For example, a machine intended for deep utility trenching may be fitted with a longer dipper arm and reduced bucket width, while a unit for stockyard loading may use a shorter boom and larger front bucket for higher volume per cycle. The mounting interfaces for the front bucket, rear bucket, and optional attachments remain common across the model range, so a single machine can be reconfigured later by changing only the relevant boom, arm, or bucket assembly.

This modular design reduces the need for custom engineering on every order and allows distributors to keep fewer base machine variants in stock. The hydraulic system is designed to accept different cylinder strokes and flow rates within the same valve block layout, so changes to digging depth or lift capacity do not require a complete redesign of the control circuit. Field installation of alternative booms or buckets can be completed using standard pins and hydraulic quick couplers.

Application Overview

1. Municipal road engineering: pavement repair, sewer and cable trenching, sidewalk leveling, and waste transport.

2. Urban and rural infrastructure: foundation excavation, irrigation ditch construction, road widening, and small building work.

3. Landscaping: tree pit digging, sapling transport, site backfilling, and green waste clearing.

4. Sand and material yards: digging and loading sand, stockpiling, short-distance transfer, and light stone breaking.

5. Agriculture and livestock: orchard trenching, feed handling, manure cleaning, and farmland preparation.

6. Equipment rental: suitable for short-term jobs on small and medium sites, where one machine can replace two separate units.

7. Small mines and tunnels: shallow excavation, residue clearing, and internal material movement.

8. Emergency repair: ditch dredging, landslide backfilling, and minor rescue earthmoving.

Warranty and Service

Warranty coverage lasts for 12 months or 1,000 operating hours, whichever is reached first. Main assemblies such as the engine, hydraulic pump, and transmission are covered for 6 months. Manufacturing defects are repaired free of charge with original parts. Failures caused by misuse, overloading, or missed maintenance are charged at parts cost only. Freight and replacement labor remain the customer's responsibility. Wear items are not included.

Frequently Asked Questions

Q1: How do I specify the digging depth and bucket capacity I need?
A1: After describing your typical jobsite conditions—such as trench depth, material type, and required daily output—we recommend a boom, arm, and bucket combination. The selection is made from standard modules, so the machine is built to your requirements without a complete custom redesign.

Q2: Can the attachments be changed in the field without special tools?
A2: Yes. The front bucket, rear bucket, and most optional attachments use standard pins and hydraulic quick couplers. With basic lifting equipment, one person can usually switch between a bucket and a breaker in under half an hour. No specialized tools or factory support are required.

Q3: Is this machine suitable for an operator who has never used a backhoe loader before?
A3: The pilot controls are designed to be light and intuitive. Most operators with experience on other construction equipment can handle basic digging and loading after a short familiarization period. The 360° swivel seat simplifies the switch between front and rear controls. A detailed manual and instructional video are provided with each machine.

Q4: How is the machine prepared for container shipping?
A4: For full-container export, the backhoe loader is partially disassembled—typically the rear boom assembly and front bucket are removed and secured inside the container. Reassembly instructions and all necessary hardware are included. The process can be completed with standard tools and lifting equipment.

Q5: What daily maintenance is required to keep the machine in good condition?
A5: Daily checks include engine oil, hydraulic oil, and coolant levels; tire pressure; bucket tooth wear; and stabilizer function. Greasing of the loader arms and backhoe pivot points should be performed according to the service schedule. Regular washing of the machine helps prevent dirt buildup around hydraulic fittings.
