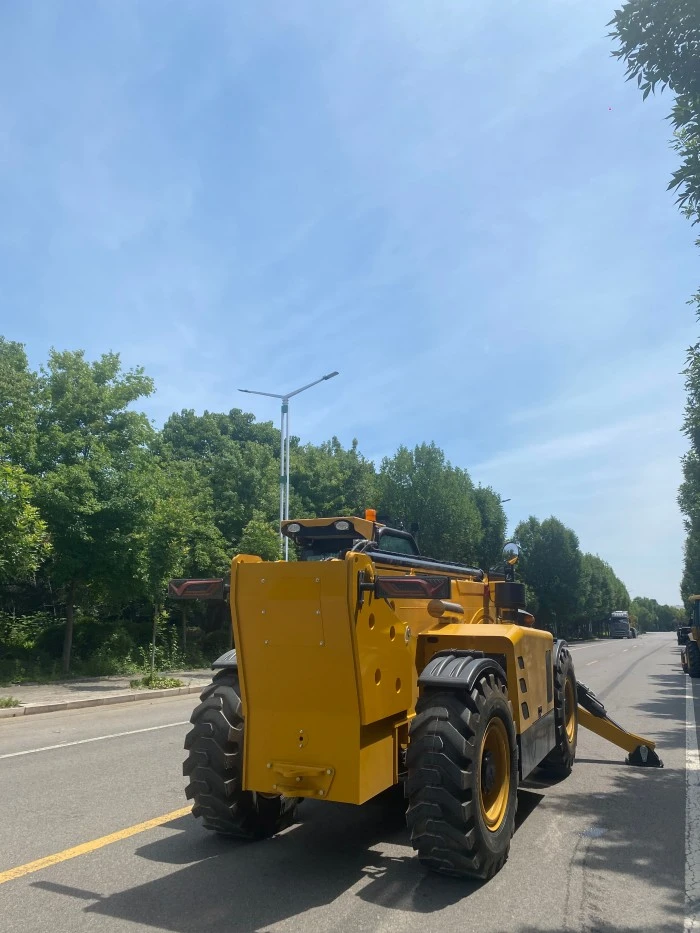

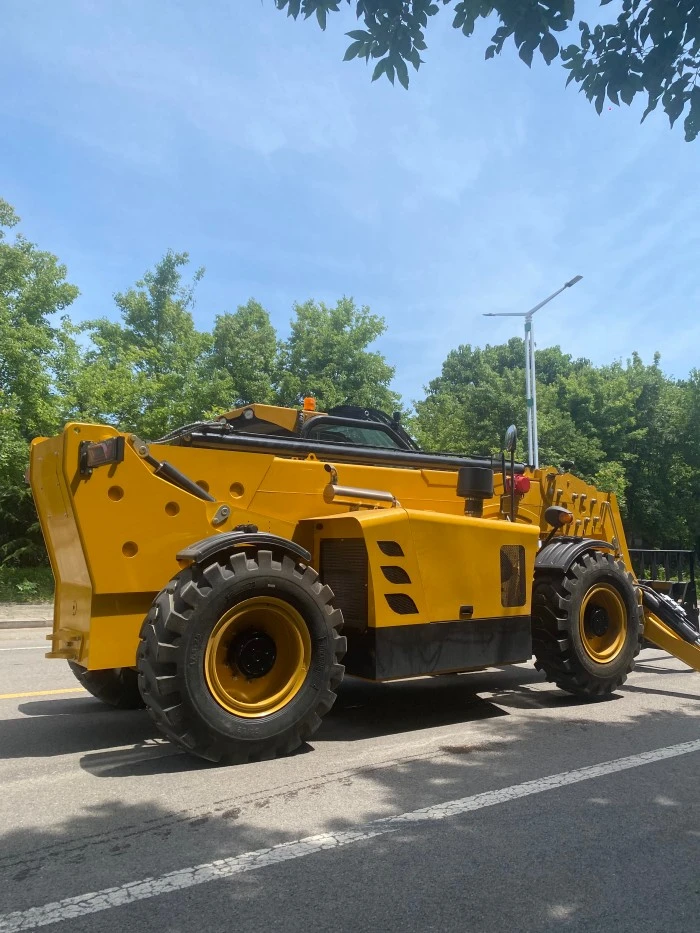

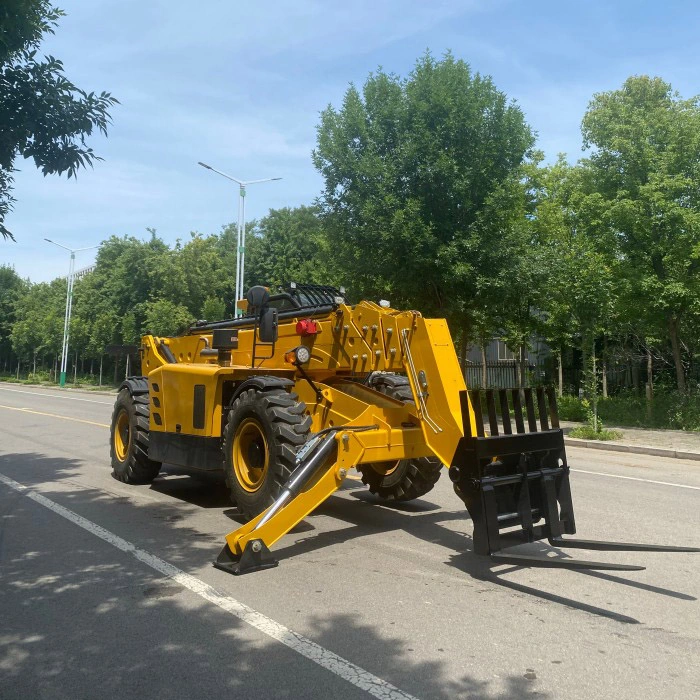

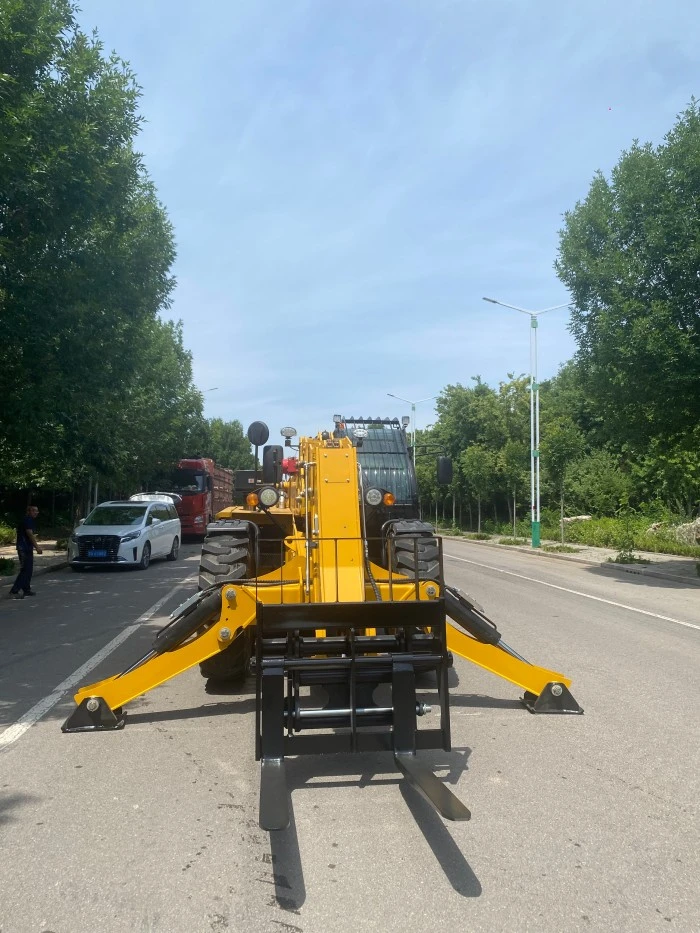

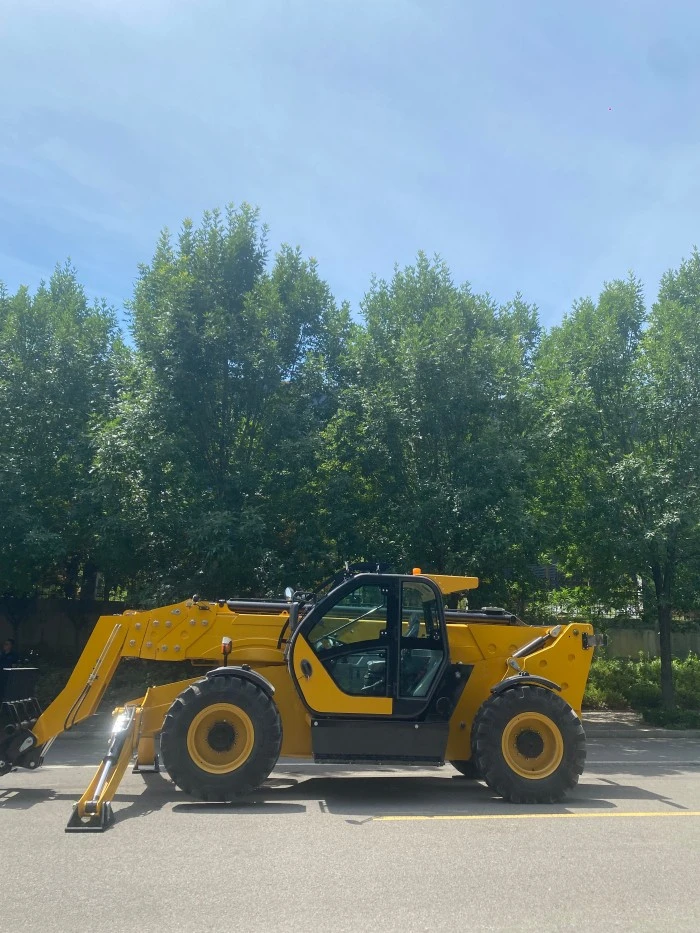

The 18m ultra-high heavy-duty telehandler from Qingzhou Mingxu Supply Chain Co., Ltd. is designed for large-scale engineering projects that require extended reach and high lifting capacity. It provides a maximum lifting height of 18 m and a maximum horizontal reach of 12 m, with rated load capacities of 4 t or 5 t (optional). In its class, the machine offers a long working span and stable performance during high-altitude operations.
The 18m Telescopic Handler is built on a reinforced heavy-duty frame and manufactured in accordance with construction standards for large equipment. It supports a range of attachments, including heavy lifting jibs, aerial work platforms for personnel, large pipe clamps, and heavy-duty buckets. In many applications, it can substitute for truck-mounted cranes, dedicated aerial work vehicles, or high-lift heavy forklifts. Typical users include infrastructure contractors, new energy project developers, and port logistics operators.
| Parameter | Specification |
|---|---|
| Maximum Lifting Height | 18 m |
| Rated Load Capacity | 4 t / 5 t (optional) |
| Maximum Horizontal Reach | 12 m |
| Travel Configuration | Full-time 4WD heavy-duty chassis, reinforced off-road tires |
| Steering Modes | Front-wheel, four-wheel, crab steering (switchable) |
| Control Configuration | Electronically controlled single joystick with proportional control and synchronized composite actions |
| Power Configuration | High-power turbocharged diesel engine; Euro V emission standard optional |
The 18m telescopic handler uses a diesel engine and a full hydraulic control system for high-lift, heavy-load material handling. Operation is based on four main modules:
1. Power and travel: The diesel engine drives the transmission, providing four-wheel drive for travel and site positioning. The heavy-duty off-road chassis is designed for uneven ground conditions.

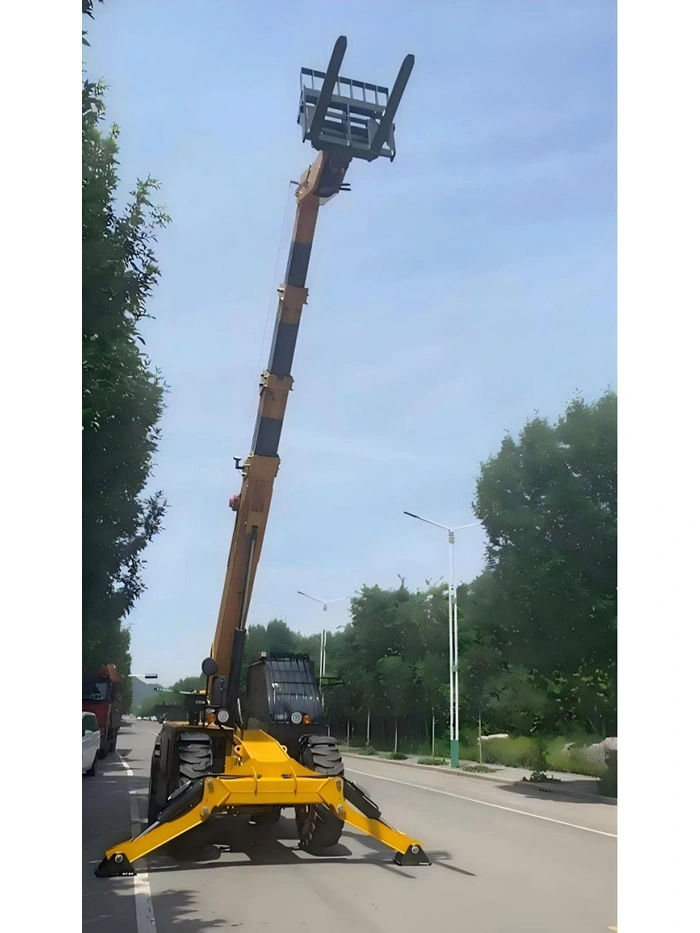

2. Telescopic boom and lifting: Multi-stage hydraulic cylinders extend and retract the boom, while luffing cylinders control the lift angle. The system achieves a maximum lift height of 18 m and a maximum horizontal reach of 12 m.
3. Hydraulic control: The engine drives the hydraulic pump; multi-way control valves direct oil flow to cylinders for boom extension, lift, fork tilt, and leveling. The system is designed for smooth operation under load.
4. Operation and attachments: Joysticks in the cab regulate hydraulic circuits. With different attachments, the machine can fork, transport, stack, and load/unload at height. A load protection system helps prevent overloading during high-reach operation.
This 18m Telescopic Handler is intended for large-scale projects and uses a professional control system. Operators should be familiar with standard procedures for heavy equipment.
Before operation, perform a full inspection of the machine, including fluid levels, hydraulic hoses, brake system, tires, and safety alarms. Start the engine only after confirming all systems function correctly.
Allow the engine to idle for at least 5 minutes to warm up. Begin work only after hydraulic pressure, oil temperature, and power system performance have stabilized.
The machine is equipped with an electronically controlled integrated joystick that supports synchronized composite movements. Boom raising/lowering, extension/retraction, and attachment leveling can be operated simultaneously for precise control during high-position lifting and stacking.
When working at height, always follow the load capacity chart. Overloading and over-reaching are prohibited. Do not travel at high speed or make sharp turns while carrying a raised load.
After finishing work, fully retract the boom and lower it to the ground to release load stress. Idle the engine briefly before shutting down to allow cooling.
1. Extended working range for high-reach applications. The 18 m lifting height and 12 m horizontal reach exceed the capabilities of standard 5 m and 12 m models. This makes the unit suitable for high-rise exterior work, large steel structure erection, wind turbine tower maintenance, and high-level stacking at ports.
2. Heavy-duty structure for continuous operation. The machine uses a reinforced frame, high-strength boom sections, and a load-bearing chassis designed for long-duration work under heavy loads.
3. Attachment compatibility. The machine supports quick connection of large attachments, including lifting jibs, work platforms, pipe clamps, and buckets, allowing it to perform a variety of tasks on the same project.
4. Customization available. Specific configurations can be adjusted for special engineering requirements.
This model is positioned for large, high-reach, heavy-load projects. Typical applications include:
The machine is commonly used by overseas general contractors, new energy companies, and port logistics groups. It can also be used in some smaller-scale applications, but is primarily designed for large projects.
The complete machine is covered by a warranty of 12 months or 1,000 working hours, whichever occurs first. Major components including the engine, main hydraulic pump, telescopic boom, and transmission are covered for 6 months.
Free repair and replacement of genuine parts are provided for quality failures not caused by human factors. For damage caused by improper operation, overload, or lack of scheduled maintenance, only the cost of spare parts is charged. Shipping costs are not included, and customers are responsible for installing replacement parts. Wear parts are excluded from the free warranty.
Q1: What are the main differences between the 18m model and the 5m or 12m models?
A1: The 5m model is designed for short-distance ground handling, and the 12m model is suitable for general medium-height rental work. The 18m unit is a heavy-duty model built for high-reach and heavy-load applications. It uses construction-grade structural strength, a larger hydraulic system, and a higher safety rating. It is not intended for small or scattered tasks; it is positioned for large engineering projects.
Q2: Large equipment may seem complex to operate. Can overseas operators become familiar with it quickly?
A2: The machine is equipped with an integrated electronic control system and standardized operation logic. We provide English operation manuals and training videos. Licensed operators can learn the standard operating procedures efficiently, in line with requirements for large overseas construction projects.
