We offer a comprehensive one-stop sourcing solution across construction machinery, agricultural and forestry equipment, marine and power systems, hydraulic components, and new energy devices, all customizable to meet diverse project needs.

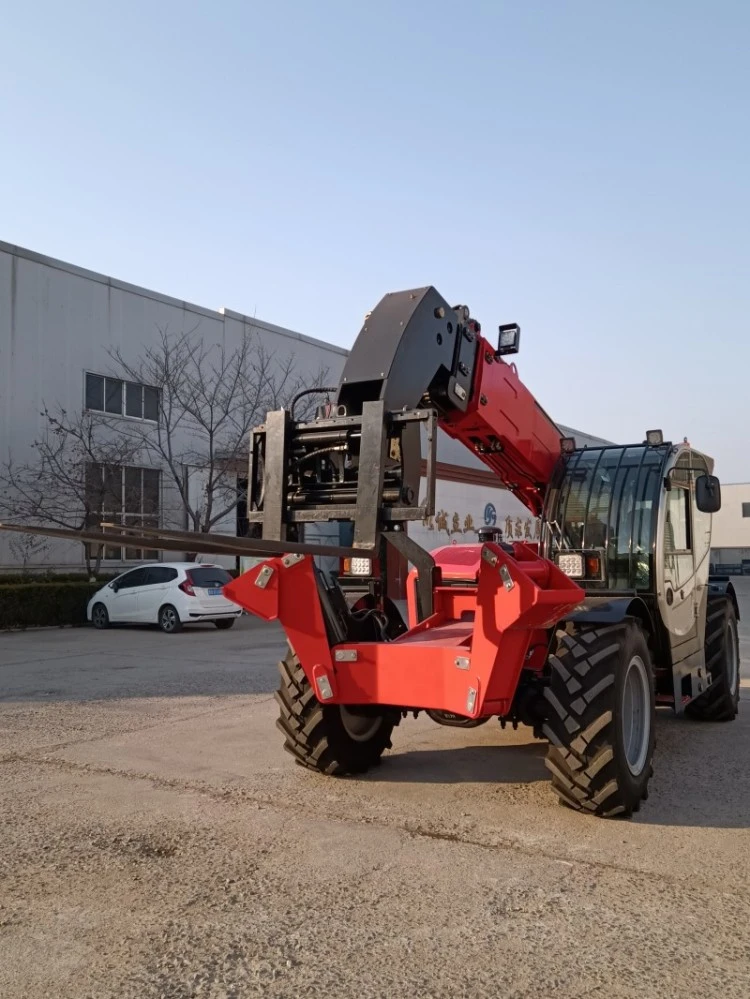

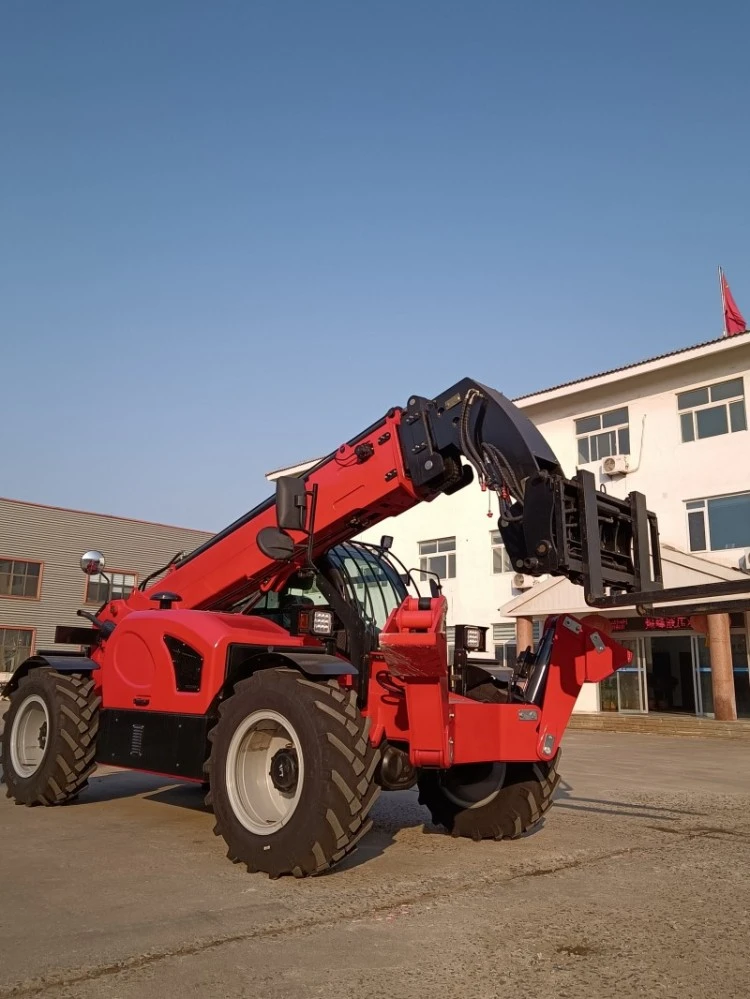

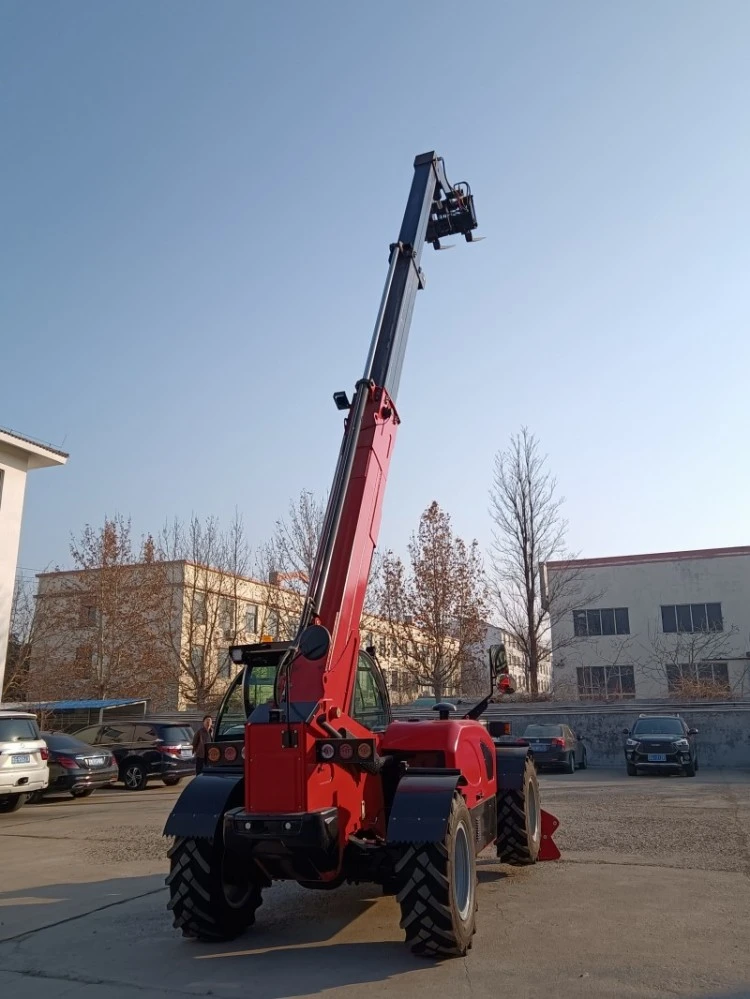

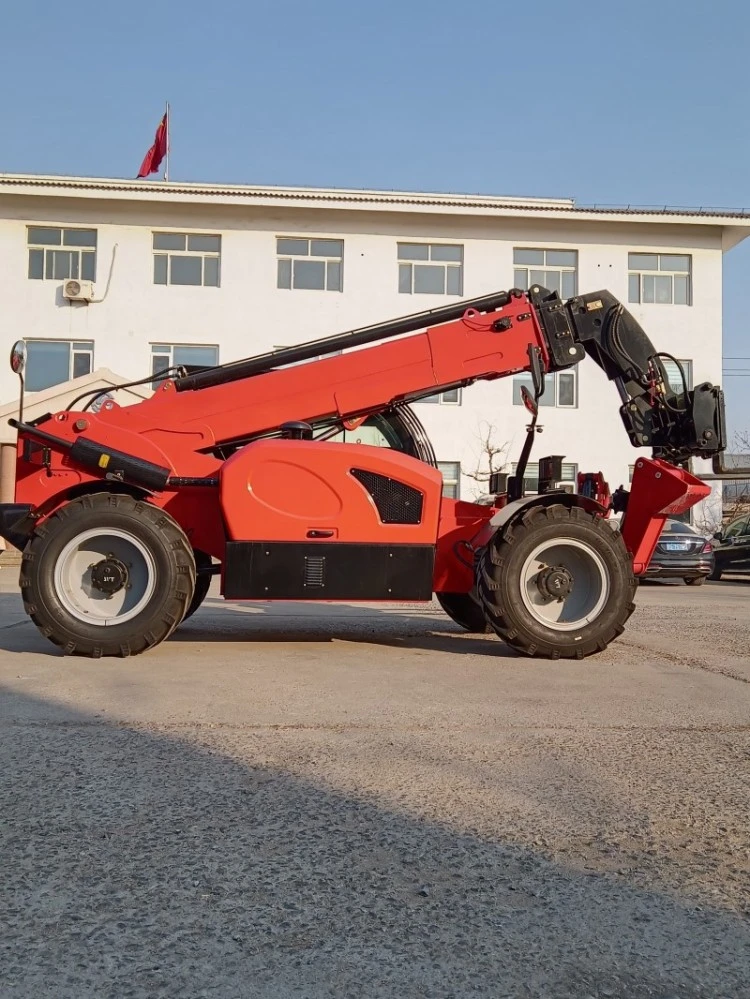

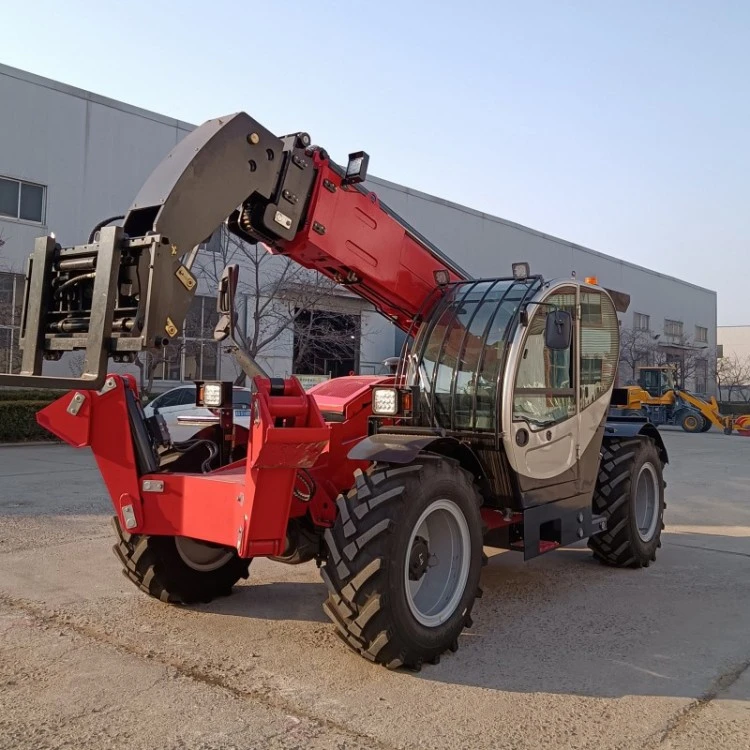

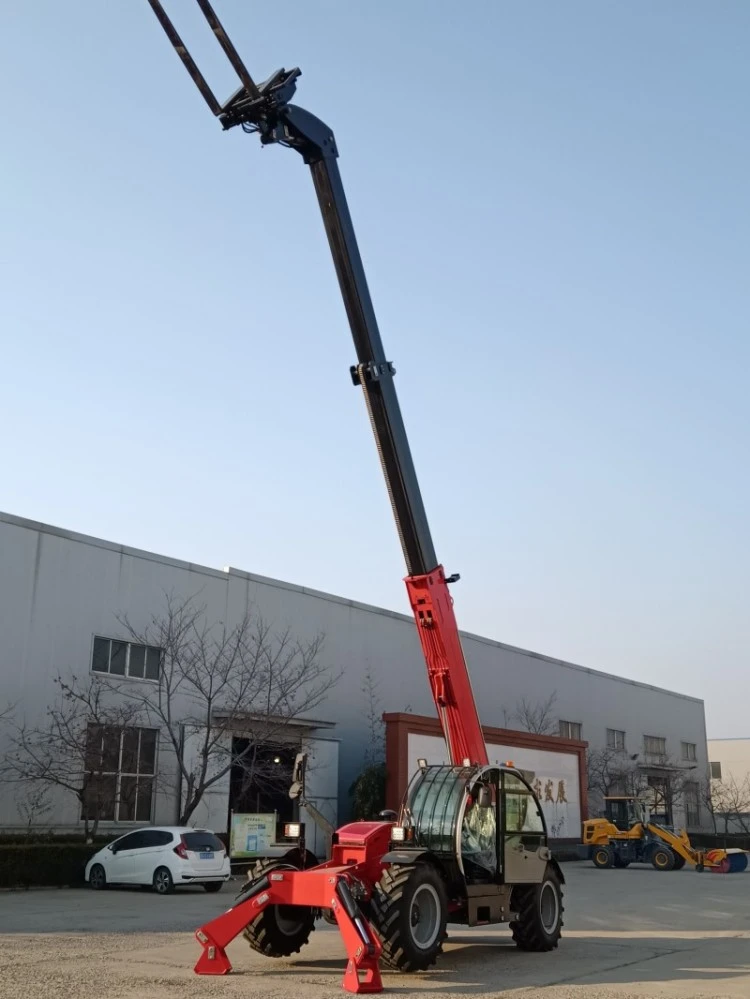

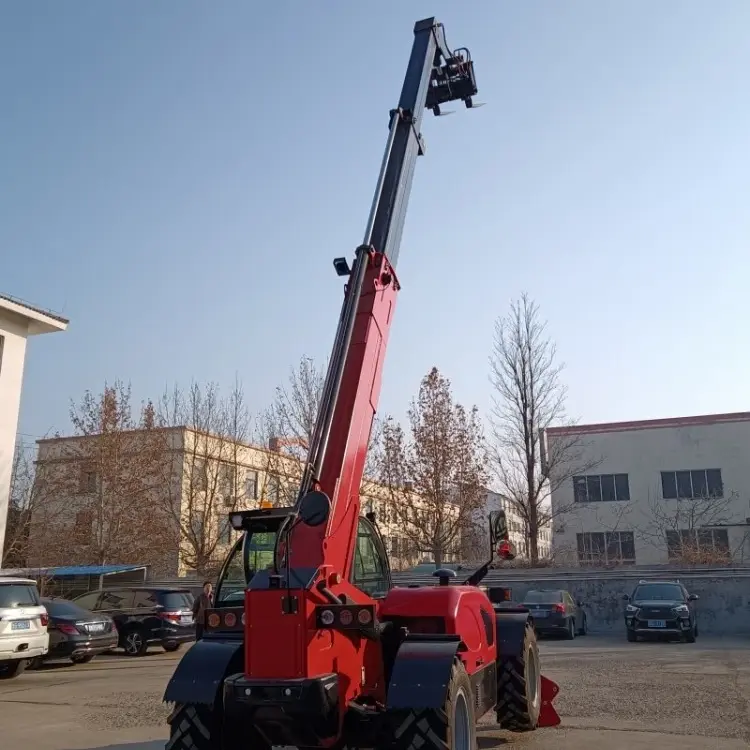

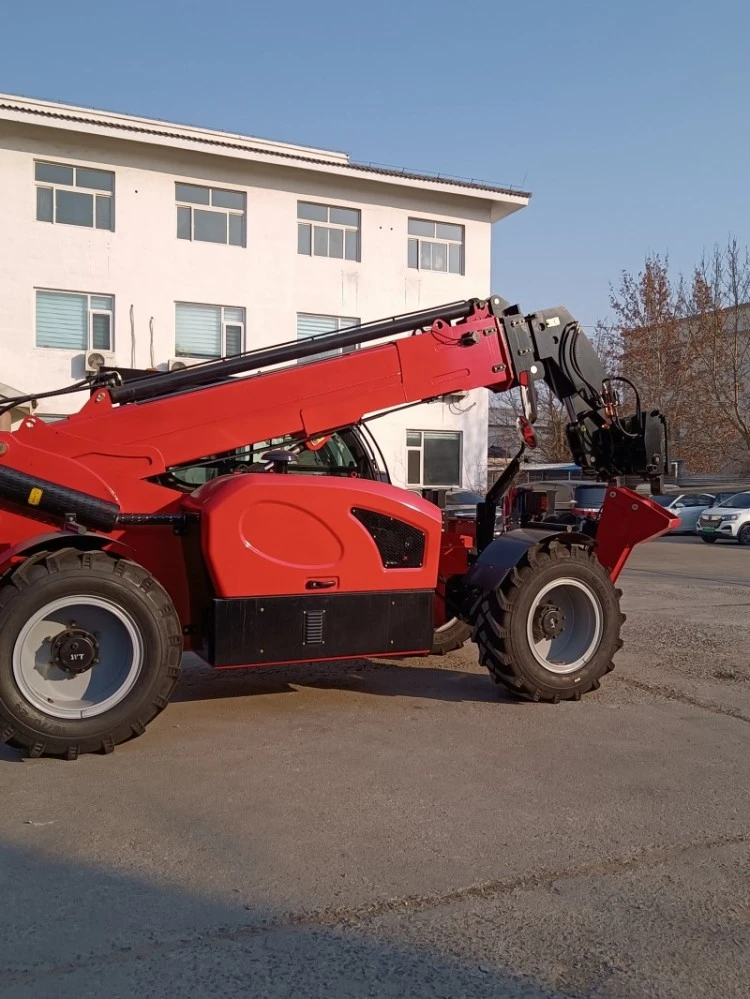

Qingzhou Mingxu Supply Chain Co., Ltd. independently develops and produces Long Boom Telescopic Forklift, multi-functional 4WD off-road construction handling machinery for the global market.
This machine integrates the functions of forklifts, loaders and small cranes. It is equipped with a hydraulic telescopic boom and a narrow compact frame, featuring a maximum lifting height of 5 meters and a horizontal forward reach of 3.3 meters. Fitted with three steering modes and hydraulic quick-change attachment couplings, a single unit can complete various working procedures.
With strong adaptability to different working conditions, stable performance and long service life, our equipment is widely applied in construction, agriculture, mining, warehousing, municipal engineering and other industries. We accept bulk export orders and provide customized modification services, making it a cost-effective primary equipment for small and medium construction projects, agricultural, forestry and mining sites.
1.Maximum Lifting Height: 5 meters
2.Rated Load Capacity: Optional 2.5 tons / 3 tons
3.Travel System: Four-wheel drive (4WD)
4.Steering Modes: Front-wheel steering, four-wheel steering, crab steering
5.Standard Fittings: Hydraulic quick couplers, ROPS/FOPS rollover and falling-object protective cab
6.Power System: China Stage II / Euro V diesel engine, low fuel consumption, compliant with environmental emission standards for exports to numerous countries
The Long Boom Telescopic Forklift adopts a full hydraulic control system. The diesel engine drives the main hydraulic pump to output high-pressure oil, supplying power for traveling, steering, lifting, telescoping and attachment movements. The multi-way directional valve precisely controls the lifting and lowering, forward and backward extension of the telescopic boom, as well as automatic fork leveling. Built-in hydraulic balance valves and overload protection valves prevent risks of tipping over and boom dropping. Matched with various hydraulic attachments, it can perform tasks including cargo forking, material shoveling, high-altitude hoisting and overhead maintenance.
1.Pre-operation Inspection: Check levels of engine oil, diesel, hydraulic oil and coolant; inspect tires, hydraulic pipes, seat belt, alarm light and emergency stop button.
2.Startup Preheating: Fasten seat belt, start engine and idle for 3–5 minutes to stabilize hydraulic system.
3.Control System: Integrated single joystick to control boom lift, extension and fork tilt; foot throttle controls driving speed.
4.Standard Operation: Align and insert forks slowly, lift goods off ground and retract boom before moving. Never turn sharply or brake suddenly with high-lifted loads.
5.Shutdown Steps: Retract and lower boom completely after work, rest forks on ground; idle for 2 minutes for cooling, engage parking brake then shut down the machine. The machine features easy operation with Chinese & English operation tutorials, new operators can master it quickly without professional experience.
1.Multi-functional Machine to Cut Procurement Costs: Equipped with a quick hydraulic coupling system for fast replacement of various attachments. It can replace forklifts, loaders and small cranes, reducing expenditure on multiple machines and saving yard space.
2.Extended Working Range: Featuring a 5m lifting height and 3.3m horizontal forward reach, it enables long-distance operations over foundation pits, soil piles and barriers, outperforming standard mast forklifts by a wide margin.
3.4WD Off-Road Chassis with Strong Site Adaptability: Fitted with deep-tread off-road tires and generous ground clearance, it travels steadily on muddy ground, gravel roads, steep slopes and rural dirt tracks.
4.Low Operation & Maintenance Costs: The machine boasts a streamlined structure with fewer wear parts and highly interchangeable spare parts. Its fuel-efficient engine and simple daily maintenance procedures allow one-person servicing.
1.Construction: High stacking of steel bars, bricks and precast panels, long-distance unloading around foundation pits, transfer of steel structure and scaffold materials.
2.Agriculture & Livestock: Greenhouse material transport, high-level grain stacking, hay bale storage, feed and silage loading for farms.
3.Mining & Sand Yard: Short-distance transport of ore bags, long-distance feeding and loading for sand stockyards.
4.Warehouse & Logistics: High rack handling in narrow aisles, container loading and unloading.
5.Municipal & Rental Business: Road maintenance, street lamp repair, tree transplanting; ideal rental machine for diversified job sites.
The complete machine is covered by warranty for 12 months or 1,000 working hours, whichever comes first. Core major components including engine, main hydraulic pump, telescopic boom and transmission gearbox enjoy a 6-month warranty.
Free repair and genuine original spare parts replacement are provided for quality failures not caused by human factors. For damage resulting from human error, overload operation or failure to perform scheduled maintenance, only the cost of spare parts will be charged. Shipping fees are not included, and customers shall complete the replacement on their own. Wear parts are excluded from free warranty coverage.
Q1: What is the rated load capacity at different lifting heights of the machine?
A1: Rated load on flat ground: 2.5 tons / 3 tons; Safe load capacity at the maximum lifting height of 5 meters: 0.5 tons; Safe load capacity at full forward extension of 3.3 meters: 0.3 tons.
Q2: Is the machine hard to operate? How long will it take for new operators to master it?
A2: It adopts simple single-handle electric control with intuitive operation logic. With supporting training videos, operators with zero experience can work independently within 1–2 days.
Q3: Can the machine work normally on muddy construction sites or in rainy weather?
A3: Equipped with four-wheel drive and anti-slip off-road tires, it travels stably on muddy, waterlogged and bumpy roads, supporting all-weather outdoor operation.
Q4: Does the machine support export and customized modification?
A4: We hold complete export qualifications and can apply for international certifications including CE and EAC. Customized modifications are available, such as load capacity upgrade, air conditioner installation, special attachment refitting and power optimization.
✅ Direct factory supply with no middlemen. We offer highly competitive factory ex-work prices, and all machines undergo strict full inspection before delivery.
✅ Custom solutions available within 72 hours: Our engineers provide equipment drawings, process flowcharts and investment return analysis based on your working conditions.
