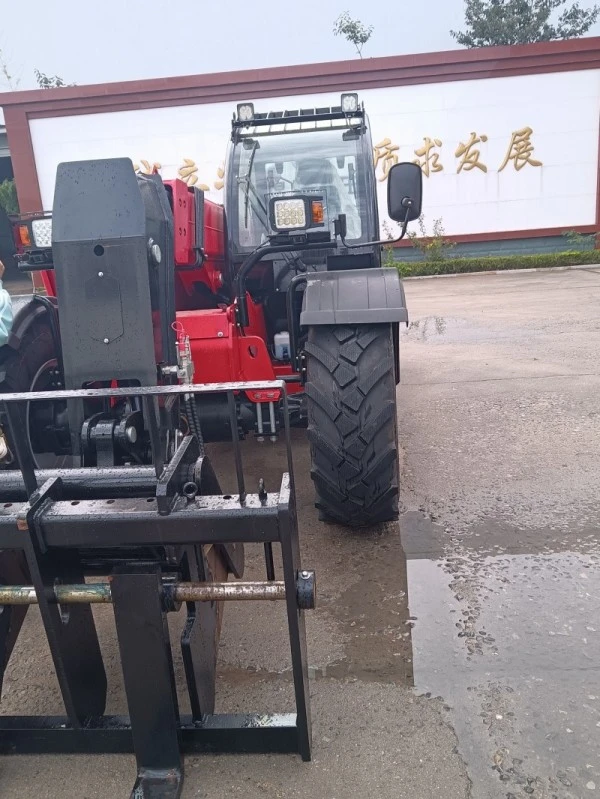

Aerial Telescopic Forklift

Qingzhou Mingxu Supply Chain Co., Ltd. supplies a Aerial Telescopic Forklift for medium-height lifting and material handling. The machine is designed for use in general construction, industrial support work, municipal maintenance, and warehousing, where a balance of reach, capacity, and maneuverability is required.

The handler is available with a choice of rated load capacities and can be fitted with different attachments. It features a four-wheel drive chassis and three steering modes, allowing operation on both open sites and in confined working areas. Export documentation and customization options are available for overseas buyers.

Technical Specifications

How It Works

The diesel engine drives the transmission to provide four-wheel drive for travel and site movement. The telescopic boom is extended and retracted by hydraulic cylinders, reaching a maximum lift height of 12 m and a forward reach of 8 m. The hydraulic pump supplies oil to the control valves, which operate the boom, fork tilt, and travel functions. Joysticks in the cab regulate the hydraulic circuits, allowing the operator to lift and transport materials at a distance.

Operating Instructions

Before starting work, inspect fluid levels, hydraulic hoses, brake system, tire condition, and safety alarms. Start the engine only after confirming all systems function correctly. Let the engine idle for 3–5 minutes to warm up, and begin operation after hydraulic pressure and temperature reach normal working values.

The machine uses an integrated single joystick for boom raise/lower, extension/retraction, and fork tilt. The control layout is designed for straightforward operation. For high-altitude work, always follow the load capacity chart. Avoid high-speed travel, sharp turns, and sudden braking with a raised load. After work, fully retract the boom and lower it to the minimum safe height, then idle the engine before shutdown.

Key Features

1. Medium-height working range. The 12 m lift height and 8 m forward reach cover most medium-height tasks in civil construction, industrial warehousing, and municipal work. Compared with a 5 m unit, the working range is significantly larger; compared with an 18 m heavy-duty model, the machine is lighter, more compact, and has a lower purchase cost.

2. Attachment compatibility. The machine supports quick switching between forks, buckets, and other attachments, allowing it to perform a range of tasks on the same site without changing the base machine.

3. Simple maintenance. The structure is relatively straightforward, with common components and low-cost wear parts, which helps reduce long-term operating costs.

Configuration and Modular Design

Load capacity selection. The Aerial Telescopic Forklift can be configured with a 4 t or 5 t rated load. The choice depends on the typical weight of materials handled and the required safety margin for the application. For lighter, high-cycle tasks such as pallet handling or warehousing, the 4 t version offers lower fuel consumption and less tire wear. For heavier loads such as precast concrete or dense aggregate, the 5 t version provides additional lift capacity at the same 12 m height, although the load chart should always be checked at maximum reach.

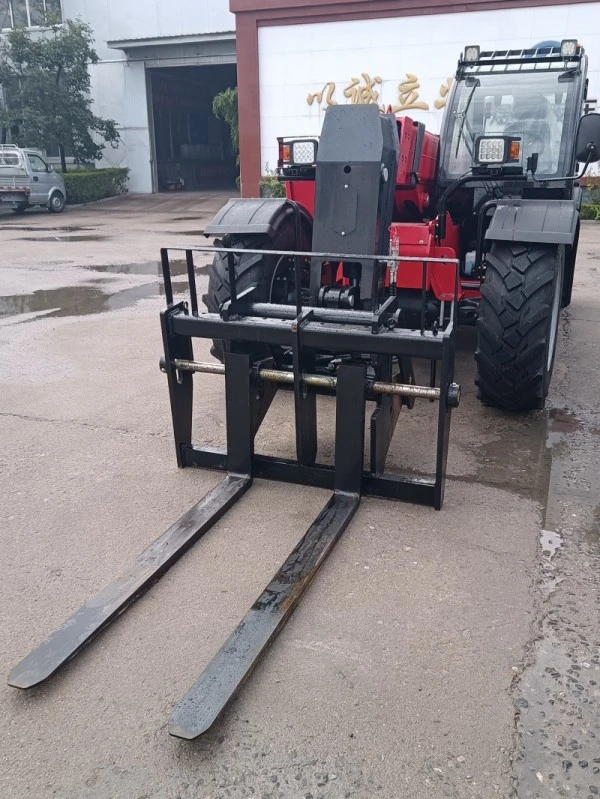

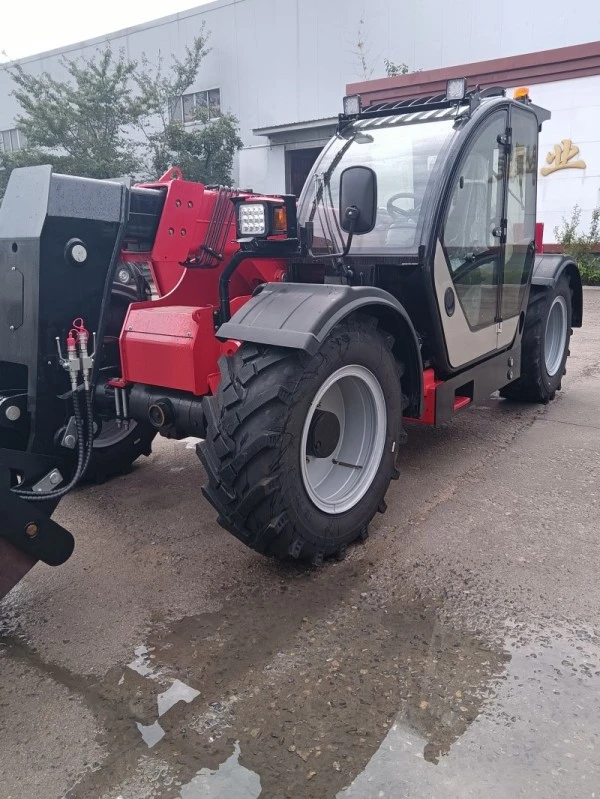

Attachment quick-change system. The front end is fitted with a standard quick coupler that allows forks, buckets, jibs, and other attachments to be exchanged using the hydraulic locking mechanism. The operator can connect or disconnect attachments from the cab in most configurations, reducing the time needed to switch tasks. Common attachment families share the same mounting interface, so a single machine can be used for lifting, shoveling, and specialized work without permanent modification.

Modular machine configuration. The main assemblies—chassis, boom, hydraulic system, and attachment interface—are designed as separate modules. This allows the machine to be ordered with the desired combination of load rating, boom configuration, and tire type without custom engineering. For example, a rental fleet may standardize on the 4 t model with solid tires for indoor use, while a construction contractor may choose the 5 t model with pneumatic tires for mixed indoor and outdoor work. Spare parts for the modular assemblies are kept in stock to simplify support for both configurations.

Typical Applications

TheAerial Telescopic Forklift is used for medium-height, high-frequency material handling. Common applications include exterior construction and material transport for small and medium buildings, steel structure installation, high-level equipment maintenance in workshops, photovoltaic module handling, municipal bridge work, high-rack stacking in warehouses, and container loading in logistics yards. It is also used by rental companies for short-term jobs on small and medium sites.

Warranty and Support

The complete unit is covered by a 12-month or 1,000-working-hour warranty, whichever occurs first. Major assemblies such as the engine, main hydraulic pump, and telescopic boom are covered for 6 months. Manufacturing defects are repaired free of charge using original parts. Damage caused by improper operation, overloading, or missed maintenance is subject to parts cost only. Freight and replacement labor are the customer's responsibility. Wear items are not included in the free warranty.

FAQ

Q1: What are the main differences between the 12 m model and the 5 m or 18 m models?
A1: The 12 m model provides a higher lift and longer reach than the 5 m unit, making it suitable for medium-height work. Compared with the 18 m heavy-duty model, it has a lighter body, lower fuel consumption, and lower purchase cost, with better maneuverability on confined sites.

Q2: Can it work in narrow construction sites or factory aisles?
A2: Yes. The machine has a compact body and is equipped with crab steering, which allows lateral movement and a small turning radius. It can navigate narrow passages, workshop interiors, and other confined areas more easily than larger high-reach equipment.
