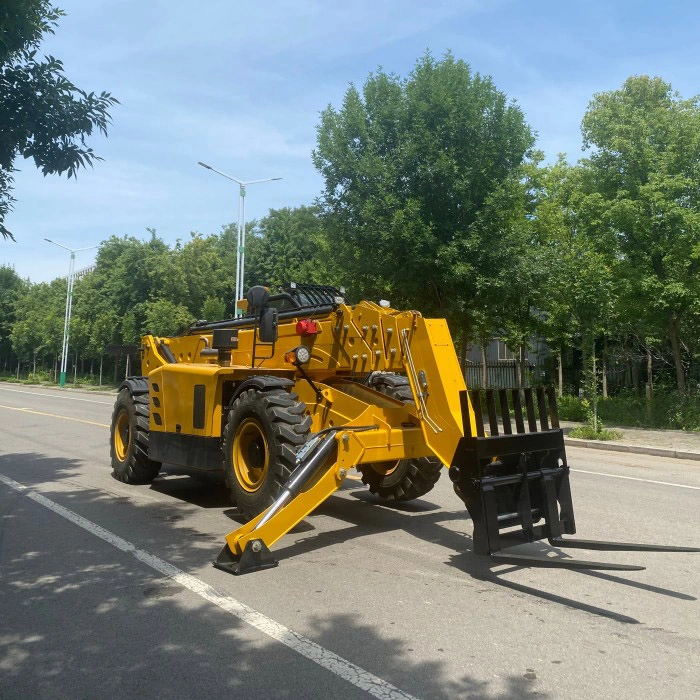

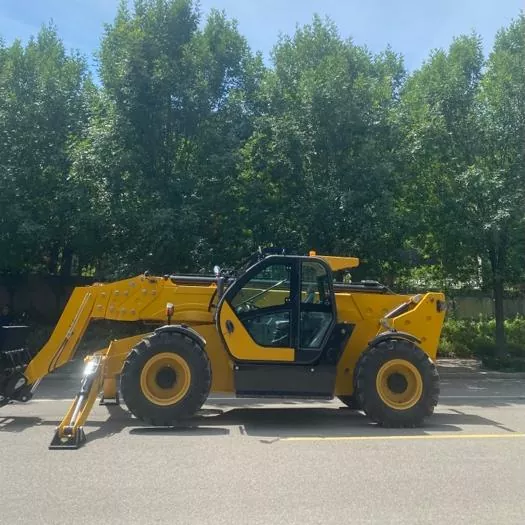

Heavy-duty Telescopic Handler with High-reach Capability

Qingzhou Mingxu Supply Chain Co., Ltd. supplies an Heavy-duty Telescopic Handler with High-reach Capability for large-scale lifting and material handling. The machine is designed for high-reach and heavy-load tasks in infrastructure, energy, and port projects, where long working span and stable high-altitude operation are required.

The unit is built on a reinforced heavy-duty frame and is available with a choice of rated load capacities. It can be fitted with a range of attachments, including lifting jibs, personnel work platforms, pipe clamps, and heavy-duty buckets. The machine is intended for use as primary equipment on major construction and industrial sites.

Technical Specifications

Operating Principle

The Heavy-duty Telescopic Handler with High-reach Capability uses a diesel engine to power both the travel system and the hydraulic circuits. The 4WD chassis provides mobility on uneven construction terrain. The telescopic boom is driven by multi-stage hydraulic cylinders, allowing lift, lower, and extension movements to a maximum height of 18 m and a forward reach of 12 m. Multi-way control valves direct oil flow to the boom, fork tilt, and travel functions, while the cab joystick provides integrated control. A load protection system is built in to reduce the risk of overloading during high-reach operation.

Operating Guidelines

Before operation, perform a full inspection of the machine, including fluid levels, hydraulic hoses, brakes, tires, and safety alarms. Start the engine and let it idle for at least 5 minutes to allow hydraulic pressure and oil temperature to stabilize. The electronically controlled single joystick supports combined boom movements for precise positioning. For high-altitude work, always refer to the load capacity chart. Overloading and over-reaching are prohibited, and high-speed travel or sharp turns with an elevated load should be avoided. After work, fully retract the boom, lower it to the ground, idle the engine for cooling, and then shut down.

Key Features

1. Extended high-reach working range. The 18 m lift height and 12 m forward reach exceed the capabilities of standard 5 m and 12 m models, making the unit suitable for high-rise exterior work, large steel structure erection, and wind turbine tower maintenance.

2. Heavy-duty construction. The reinforced frame, high-strength boom sections, and load-bearing chassis are designed for continuous operation under heavy loads.

3. Attachment compatibility. The machine supports quick connection of large attachments, including lifting jibs, work platforms, and pipe clamps, allowing multiple tasks with a single base unit.

4. Customizable configuration. Specific parameters can be adjusted for special engineering requirements, including engine emission standard, tire type, and attachment selection.

Deployment Notes for High-Reach Projects

This model has been used in several categories of work where high lifting height and heavy load capacity are the primary requirements. The following notes summarize practical observations from various project sites.

High-rise building work. On super high-rise projects, the 5 t load version is commonly selected along with reinforced off-road tires and a lifting jib. The handler is frequently employed to lift curtain wall sections, precast panels, and steel beams to upper floors. Operators typically position the machine on a stable, level surface and use crab steering for fine lateral movement in restricted street-level access areas. Load charts are strictly observed at maximum reach. When continuous façade work is planned, a second unit is often stationed at ground level for material staging, reducing boom travel time on the primary machine.

Wind turbine support. For turbine tower installation and maintenance tasks that do not justify a full crane, the 18 m handler provides a practical alternative for smaller components, cable trays, and tools. The usual configuration includes a personnel work platform and either a pipe clamp or lifting jib. The 4WD chassis and selectable steering modes are necessary for moving between turbine foundations on unpaved access roads. Wind speed limits are carefully monitored during high-reach lifts, and all operations follow the manufacturer's load chart.

Port and container yards. In high-level stacking and auxiliary cargo handling, the handler is often equipped with a fork carriage or heavy-duty bucket and set to the 4 t load rating for higher cycle speeds. Crab steering allows maneuvering between container rows, while front-wheel steering is used for longer transfers. The reinforced chassis and heavy-duty axles have shown dependable stability when handling dense loads at height. Due to salt air and frequent duty cycles, operators place extra emphasis on daily checks of the boom pivot and attachment locking pins.

Large infrastructure works. For bridges, stadiums, and major municipal projects, the handler functions as a support unit for lifting formwork, rebar bundles, and prefabricated sections. Its long forward reach permits material placement over obstacles without relocating the base machine. The quick coupler enables fast switching between a lifting jib and a bucket, minimizing downtime. On large sites, the handler is typically paired with a dedicated crane: the handler manages smaller lifts at medium height while the crane handles the heaviest loads, improving overall equipment utilization.

Application Areas

The Heavy-duty Telescopic Handler with High-reach Capability is intended for large-scale, high-reach, and heavy-load applications. Typical uses include:

1. High-rise construction: material handling for super high-rise buildings and structural steel installation.

2. Energy projects: wind turbine tower installation and maintenance, photovoltaic bracket hoisting.

3. Port and logistics: high-level stacking, container auxiliary operations, and cargo handling in terminals.

4. Large industrial facilities: installation and maintenance of high-position equipment in workshops and plants.

5. Infrastructure maintenance: high-altitude work on bridges and major municipal structures.

Warranty and Support

The complete unit is covered by a 12-month or 1,000-working-hour warranty, whichever occurs first. Major assemblies such as the engine, main hydraulic pump, telescopic boom, and transmission are covered for 6 months. Manufacturing defects are repaired free of charge using original parts. Failures caused by improper operation, overloading, or lack of scheduled maintenance are subject to parts cost only. Freight and replacement labor are the customer's responsibility. Wear items are outside the free warranty.

FAQ

Q1: How does the 18 m model differ from the 5 m and 12 m versions?
A1: The 5 m model is designed for short-distance ground handling, and the 12 m model suits general medium-height work. The 18 m unit is a heavy-duty model built for high-reach and heavy-load applications. It uses construction-grade structural strength, a larger hydraulic system, and a higher safety rating. It is intended for large engineering projects rather than scattered small tasks.

Q2: Can overseas operators learn to operate this machine quickly?
A2: The machine is equipped with an integrated electronic control system and standardized operation logic. English manuals and training videos are provided. Licensed operators with prior experience on telescopic handlers or similar equipment can typically become familiar with the controls after a short training period.
