Loader Ice Breaker Attachment

The Loader Ice Breaker Attachment from Qingzhou Mingxu Supply Chain is designed for removing compacted ice and hard-packed snow from road surfaces in winter. It can be attached to standard loaders through a quick coupler without requiring extensive modification to the host machine.

The unit is equipped with a high-manganese steel ice breaking roller fitted with replaceable cutters. The hydraulic drive system provides consistent rotation for cutting through thin ice, thick ice, and compacted snow. An adaptive floating buffer system allows the roller to follow uneven road contours while reducing the risk of pavement damage. Typical applications include municipal roads, highways, residential areas, factory yards, and rural roads.

Operating Principle

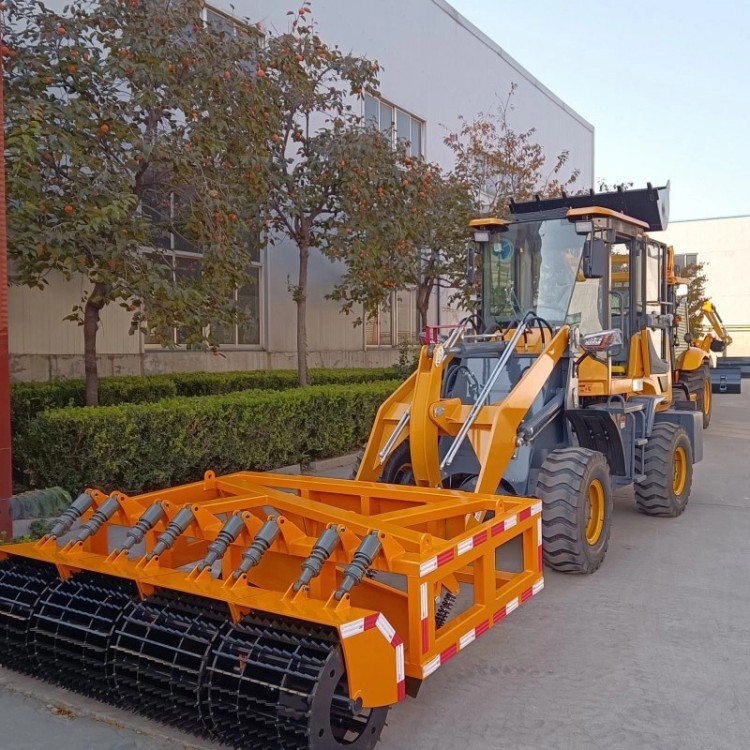

The ice breaker is mounted at the front of the loader and receives hydraulic power from the host machine. The roller rotates at a steady speed, and the cutter teeth cut, crush, and break ice layers through impact and pressure. The floating buffer system allows the attachment to adjust its height according to the road surface, reducing the risk of rigid contact with pavement. As the loader advances, the broken ice is cleared from the path, allowing continuous operation.

Technical Specifications

Compatible Loader Specifications (Reference)

2-Meter Ice Breaker Attachment Specifications

Operating Instructions

1. Installation and inspection: Connect the ice breaker to the loader's quick coupler, lock the pins and hydraulic interfaces. Check the frame, roller, and bearings for looseness or deformation, and ensure all hydraulic hoses are tightly connected without leakage.

2. No-load trial run: Start the loader at idle speed, test the rotation and floating lift function of the ice breaking roller. Confirm the roller runs smoothly without jamming or abnormal noise, and the hydraulic system responds properly.

3. Working adjustment: Set the roller height according to ice thickness, snow hardness, and road flatness. The cutter teeth should contact the road surface evenly. The floating structure provides buffer space to avoid rigid impact on pavements, manhole covers, and curbs.

4. Ice breaking operation: Move forward at a steady low speed. Avoid sudden acceleration, stopping, or sharp turns. In areas with thick ice, reduce speed or make repeated passes to ensure complete removal.

5. Shutdown and maintenance: Lift the roller off the ground after work, shut down the machine after idling. Clean snow, ice, and debris from the roller, check cutter wear, bolt tightness, and oil circuit sealing. Store in a dry location.

Key Features

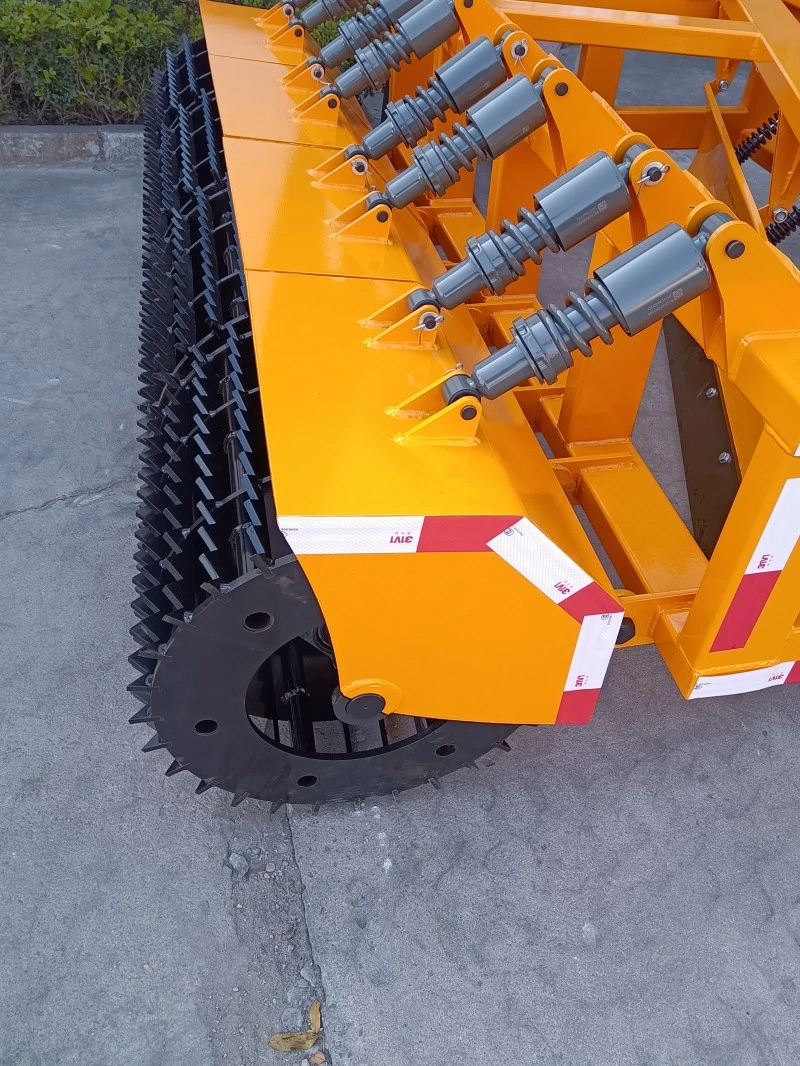

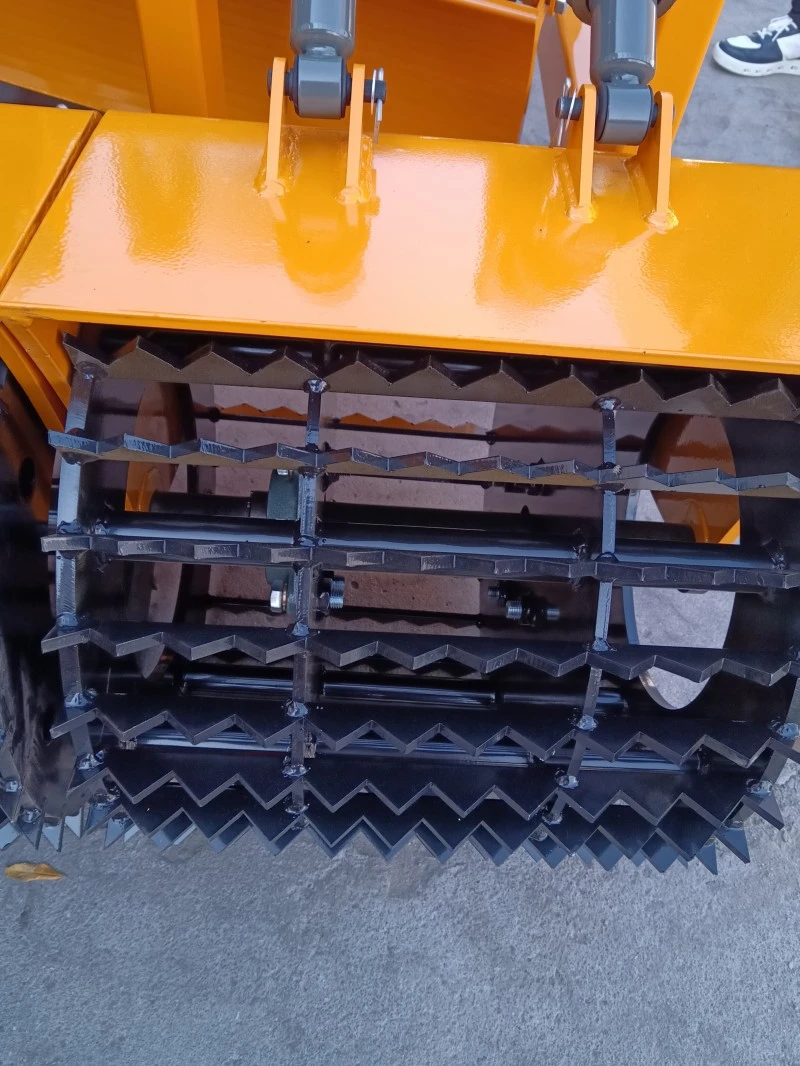

1. Heavy-duty ice breaking roller. The roller is made of high-manganese steel and fitted with replaceable cutters, suitable for thick ice and compacted snow.

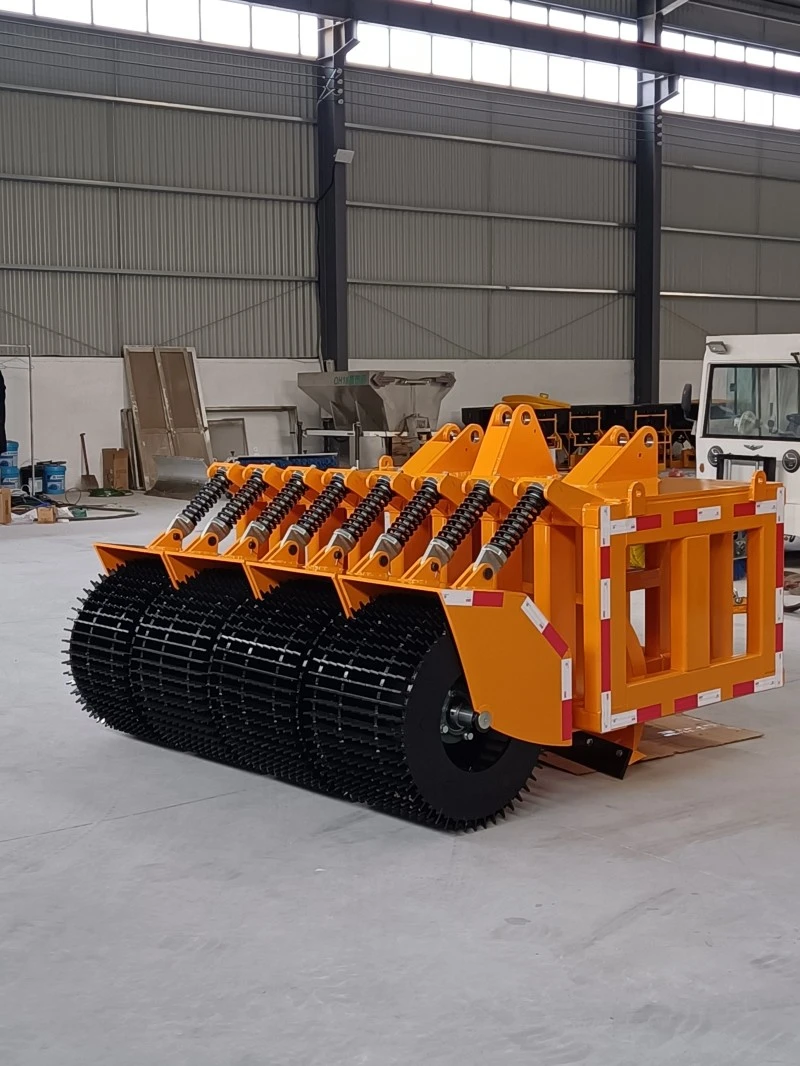

2. Floating buffer system. The attachment adjusts to follow road contours, helping to protect the pavement from direct impact and reducing the risk of scratching.

3. Hydraulic drive from the host machine. The roller is powered by the loader's hydraulic system, providing consistent rotation without an additional engine.

Typical Applications

1. Municipal main and branch roads: breaking black ice and compacted frozen ice on urban roads, rural highways, and sidewalks.

2. Expressway transportation hubs: clearing thick ice on ramps, toll stations, and service area parking lots.

3. Airport and port yards: continuous large-area deicing on auxiliary taxiways, aprons, and cargo yards.

4. Industrial and logistics parks: crushing frozen ice-snow layers on factory roads, truck loading platforms, and mine access roads.

5. Campus and community squares: gentle ice removal on residential walkways, campus squares, and park tile pavement without damaging ground paving.

Project Cases

Case 1: Municipal road deicing in northern China. A municipal sanitation department in a northern Chinese city used the 2-meter ice breaker attached to a 50 loader to clear compacted ice on main roads after a snowstorm. The equipment operated continuously for three nights, covering approximately 12 kilometers of urban arterial roads. The floating buffer system prevented damage to manhole covers and road markings, and the average working speed was 8–10 km/h during thick ice removal.

Case 2: Expressway ramp emergency deicing in Europe. A highway maintenance contractor in a European country selected a customized 2.5-meter ice breaker for use on expressway ramps and toll plazas. The attachment was configured with narrower rollers and a higher number of ice breaking wheels to handle deeply rutted ice on curved sections. After deployment, the contractor reported that the unit cleared hard ice layers up to 8 cm thick in a single pass, reducing the need for salt spreading on critical sections.

Case 3: Airport apron ice removal in a high-altitude region. An airport ground services team used a loader-mounted ice breaker to clear frozen slush and compacted snow from aircraft parking aprons. The floating system adapted to concrete joints and drainage grates without causing damage. The operation was completed during a night closure window, and the unit covered more than 6,000 m² of apron area within four hours.

Customization Capabilities

The Loader Ice Breaker Attachment can be adapted to different working widths and road conditions. Standard widths start at 2 meters, with extensions available in increments of 0.5 meters up to 3.6 meters. Roller diameter, number of ice breaking wheels, and cutter arrangement are selected based on the typical ice thickness and surface type.

For asphalt and concrete roads, standard carbide-tipped cutters are used with moderate floating pressure. For tile or decorative pavement, softer spring settings and a larger number of smaller-diameter wheels are specified to reduce ground pressure. For extreme hard ice or frozen gravel, the roller can be reinforced with additional wear plates and the cutter density increased.

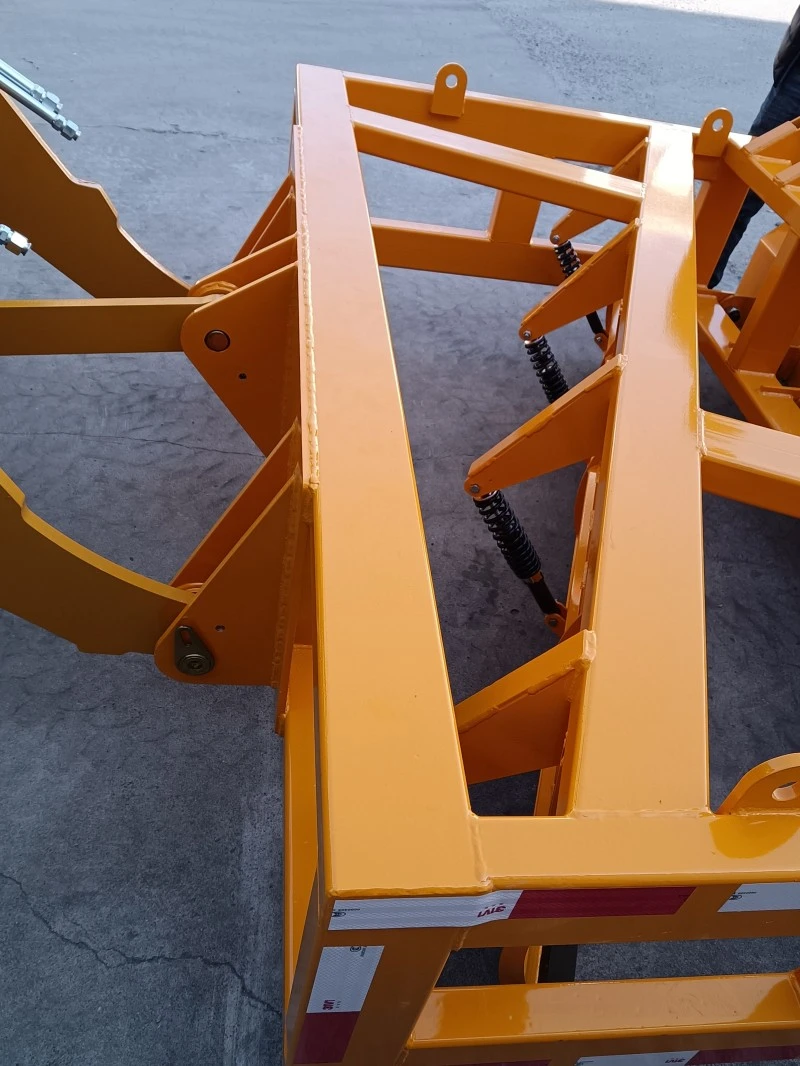

Mounting brackets can be customized to fit specific loader brands and models. Hydraulic flow requirements are matched to the host machine's auxiliary circuit capacity. Detailed technical drawings are provided for review before production, and on-site commissioning can be arranged for first-time installations.

Warranty and Support

The ice breaker attachment is covered for 12 months or 1,000 working hours, whichever comes first. Major components such as the hydraulic motor, bearings, and roller shaft are covered for 6 months. Wear parts including cutter teeth and cutting edges are not included in the warranty. Replacement parts can be supplied; shipping and installation labor are the customer's responsibility.

FAQ

Q1: What is the maximum ice thickness the ice breaker can handle?
A1: The standard configuration is designed for ice layers up to 100 mm thick in a single pass. For thicker ice, it is recommended to make multiple passes or reduce the working speed. Extremely hard ice may require pre-treatment with chemical deicers or a heavier roller configuration.

Q2: Can the floating buffer system be adjusted for different road surfaces?
A2: Yes. The spring tension and ground pressure can be adjusted during installation. For delicate surfaces such as tile or decorative pavement, the pressure is set lower. For concrete or asphalt, a firmer setting improves cutting performance. Adjustments should be made before the start of the season.

Q3: What maintenance does the ice breaker require during winter operation?
A3: After each shift, remove ice and debris from the roller and cutters. Check for loose bolts, hydraulic leaks, and wear on cutter teeth. Grease the roller bearings weekly. Replace any broken or excessively worn cutter teeth before the next operation to avoid damage to the roller body.

Q4: How is the working width decided when ordering?
A4: The working width should match the typical road lane width or the width of the host loader. A wider attachment clears more area per pass but requires a more powerful loader and may be less maneuverable in narrow streets. We recommend measuring the narrowest passage the machine will need to enter and confirming the loader's hydraulic flow capacity before finalizing the width.
