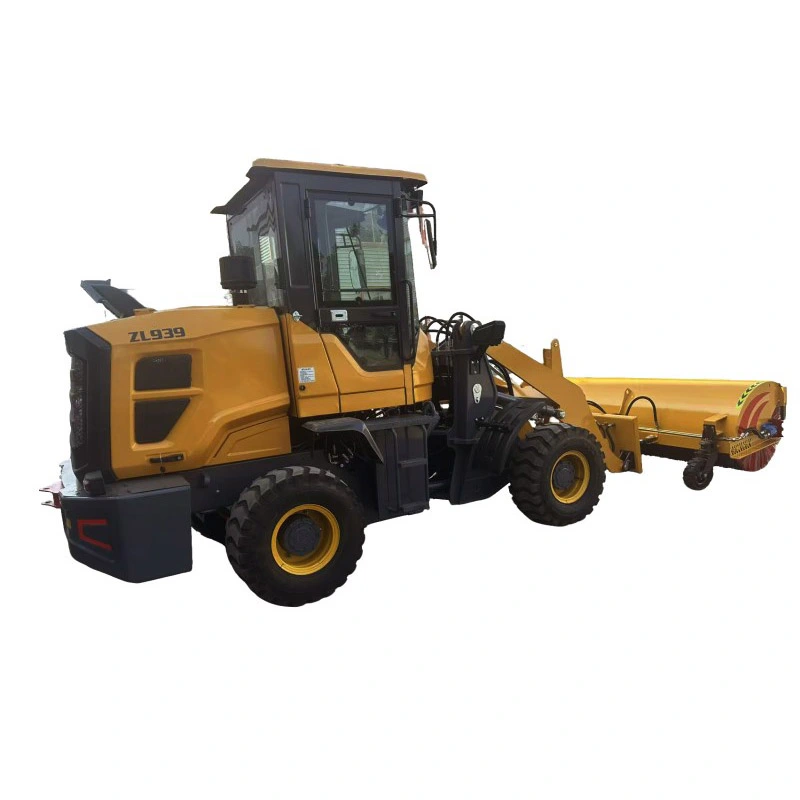

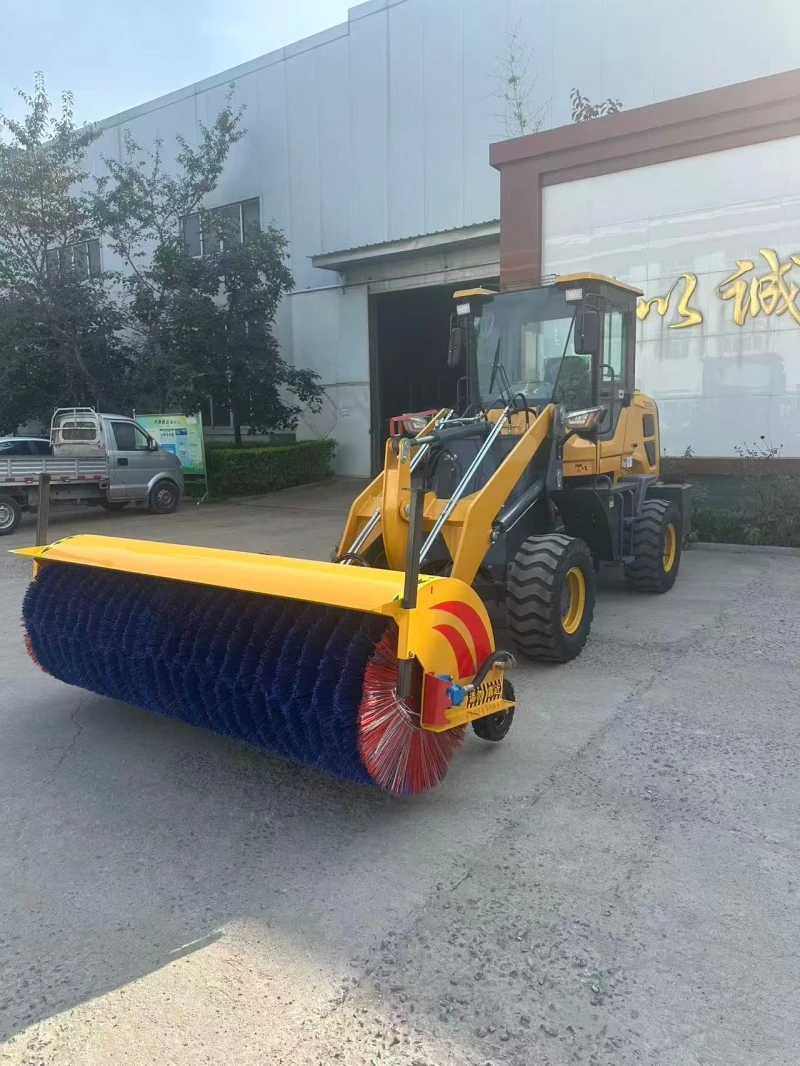

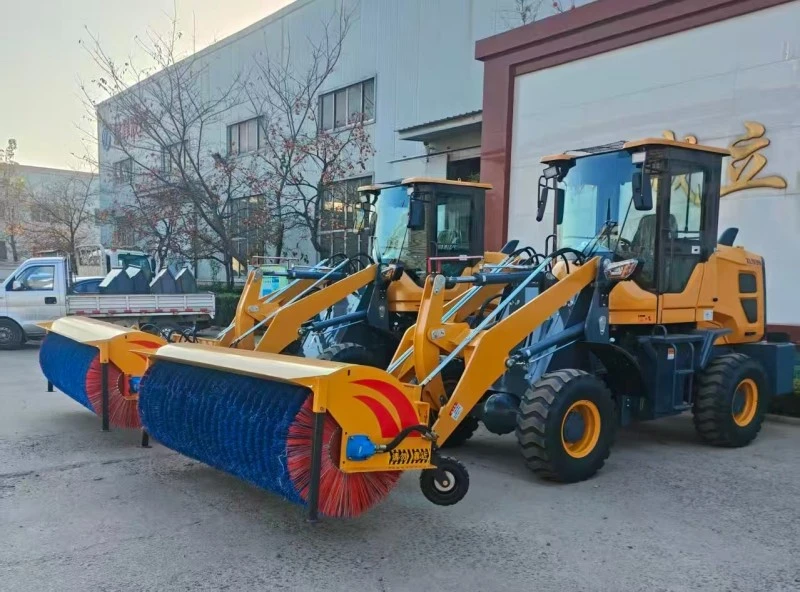

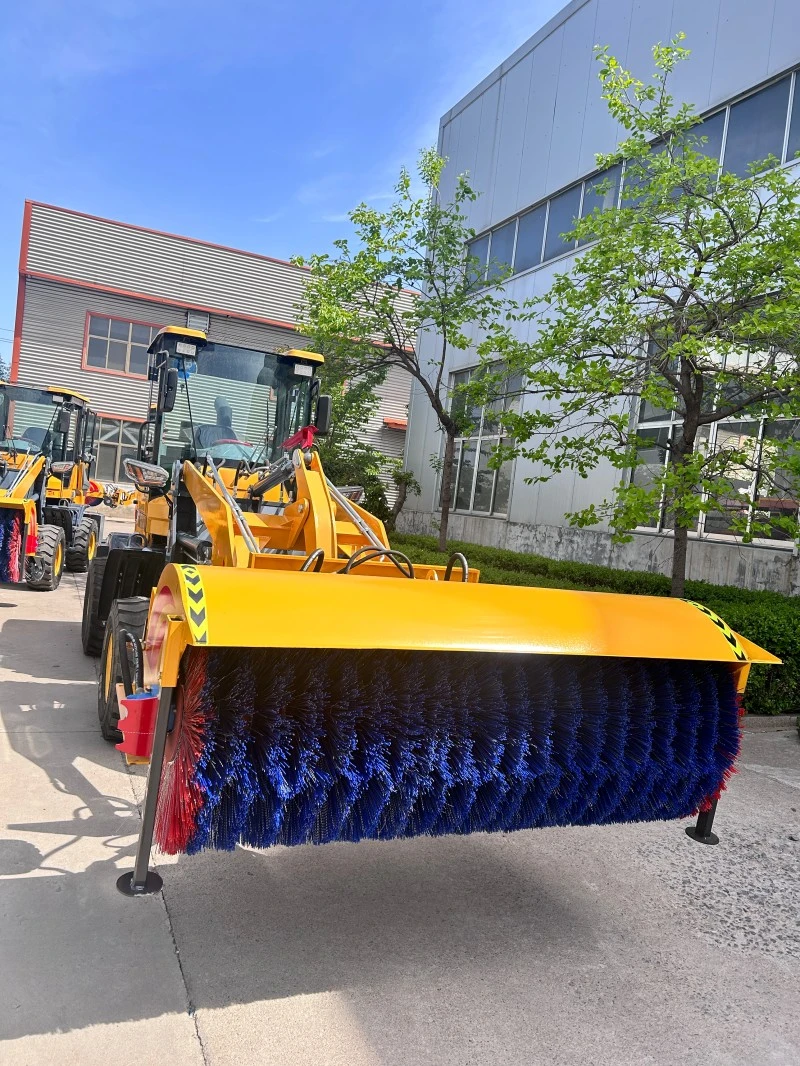

Loader-mounted Snow Sweeper

The Loader-mounted Snow Sweeper is a complete snow removal machine built on a loader chassis with an integrated front roller brush. It is designed for clearing loose snow, compacted snow and thin ice from roads, parking areas, factory grounds and other paved surfaces. The machine is delivered ready to work, with no additional mounting or modification required. The roller brush is driven by an independent hydraulic system and equipped with floating support wheels that follow the road surface. The brush head uses a mix of nylon and steel wire bristles to clean effectively without damaging the pavement.



Working Principle

The machine uses the loader engine to drive a hydraulic pump. High-pressure oil is sent through separate lines to the hydraulic motor of the front roller brush, causing the brush to rotate at a controlled speed. Travel speed and brush speed are controlled independently from the cab. The operator can adjust the brush rotation and driving speed according to snow depth and road conditions.

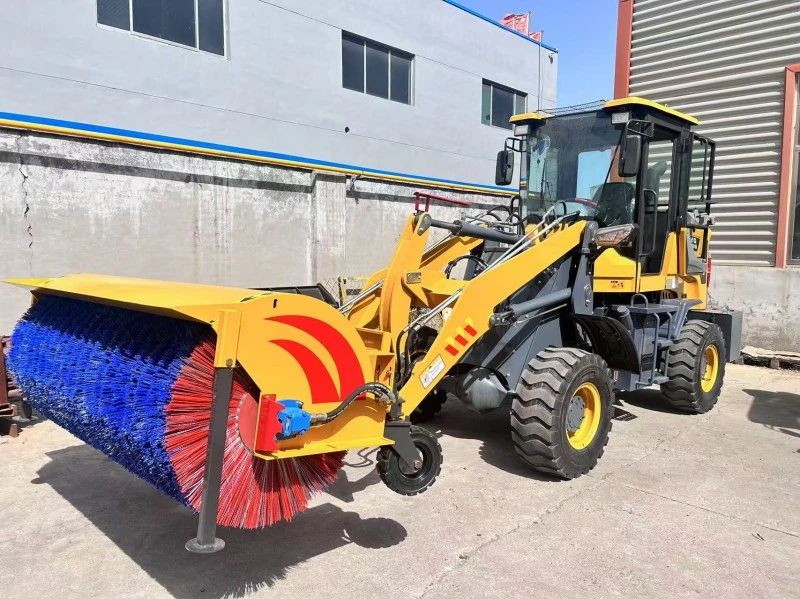

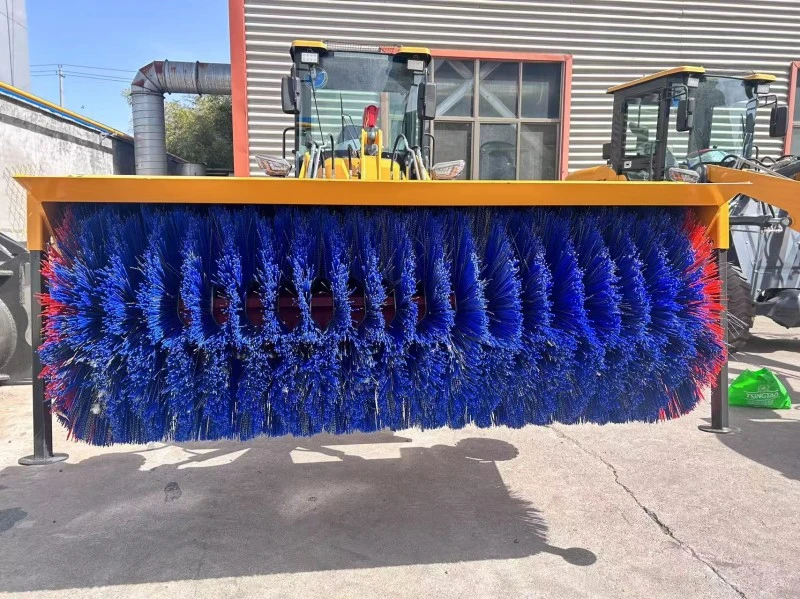

The roller brush is fitted with mixed nylon and steel wire bristles. Front floating support wheels keep the brush in contact with uneven ground, allowing it to follow the road profile. As the brush rotates, cutting force and centrifugal force remove snow and ice from the surface and discharge it to the side of the machine. An arc-shaped shield covers the brush to prevent snow from being thrown backward onto the cleared path.

All hydraulic controls are located in the cab. The operator can start, stop, lift and adjust the snow throwing direction from the seat. Four large-pattern off-road tires provide traction on icy or slippery surfaces. This design supports continuous snow removal on factory roads, highways, parking areas and similar paved surfaces.

Operating Instructions and Maintenance

Pre-operation Inspection

• Check the roller brush, shield and tires for damage. Confirm there is no hydraulic oil leakage on the pipelines.
• Verify engine oil and coolant levels are sufficient. Test all control levers and lights in the cab.
• Remove stones and other debris from the road surface to prevent damage to the brush.

Startup and Warm-up

• Fasten the safety belt, return all levers to neutral, apply the handbrake, start the engine and let it idle for 3 to 5 minutes.
• Lift, lower, start and stop the roller brush without load to confirm smooth hydraulic movement. Test steering and brakes at low speed.

Snow Removal Operation

• Lower the roller brush until the support wheels touch the ground and the bristles lightly contact the pavement.
• Start the roller brush. Use low brush speed for light snow and high speed for deep or compacted snow.
• Drive straight at a steady low speed. For thick snow, clean in two passes and discharge snow to both sides of the road.
• Reduce speed on icy roads. Avoid sharp turns and sudden braking.

Shutdown Procedure

• Turn off the roller brush first. Lift the brush off the ground after it has completely stopped.
• Let the engine idle for about 2 minutes to cool down. Apply the handbrake, shift to neutral, shut down the engine and cut off power.

Post-operation Maintenance

• Wash snow and ice off the machine and roller brush to prevent parts from freezing.
• Inspect bristles and hydraulic hoses for damage. Park the vehicle on flat, dry ground.

Safety Instructions

• Keep personnel away from the rotating roller brush. No one should stand within the snow throwing area.
• Do not sweep roads with large hard objects that could damage the equipment.
• Stop operation immediately if abnormal noise or oil leakage is noticed.

Design and Construction

1. Integrated all-in-one design. The Loader-mounted Snow Sweeper combines the loader chassis and snow sweeper attachment at the factory. No separate loader purchase or secondary modification is required. The power system and hydraulic system are matched during production, which reduces installation errors and improves reliability.

2. Floating support wheels and mixed brush material. Front support wheels automatically follow uneven road surfaces, keeping the brush in contact with the ground. The brush uses a combination of nylon and steel wire bristles, allowing it to remove compacted snow and thin ice while minimizing pavement scratching.

3. Centralized cab controls. The hydraulic control valves are located inside the cab. A single operator can control brush start, stop, lifting and snow throwing direction without leaving the seat.

Application Scenarios

• Municipal road maintenance: Winter snow and thin ice removal on urban main roads, ring roads, township highways and sidewalks. Suitable for annual bulk procurement by sanitation departments.
• Transportation hubs: Snow clearing on expressway ramps, toll stations, service areas and large parking lots to keep traffic moving during heavy snowfall.
• Airport and port yards: Large-area snow removal on airport auxiliary roads, aprons, port container yards and freight passages. The machine clears snow without leaving residue or damaging the surface.
• Industrial and mining parks: Ice and snow removal on mine access roads, logistics park main roads and loading platforms to maintain uninterrupted production and transport.
• Public leisure areas: Snow removal on paved roads in squares, campuses, communities and parks. The machine operates with enough control to avoid damaging decorative paving or landscape features.

Technical Specifications

How to evaluate these specifications for your site:

• Maximum sweeping width (2000 mm): This determines the width of the path cleared in one pass. For narrow roads, multiple passes may be needed.
• Maximum working speed (10 km/h): This is the highest recommended travel speed during snow removal. On icy surfaces, operating speed should be lower.
• Roller brush diameter (800 mm): Larger brush diameter allows the brush to maintain contact with uneven surfaces while absorbing shocks.
• Overall machine weight (3500 kg): Heavier machines provide better traction on snow and ice, but may be restricted on soft ground or sensitive pavements.
• Turning radius (3500 mm): Confirm that the machine can turn at the ends of your work area without additional maneuvering space.

After-Sales Service

The complete machine is covered by a 12-month or 1,000-working-hour warranty, whichever comes first. Core components including the engine, main hydraulic pump, hydraulic motor and transmission gearbox are warranted for 6 months. Free repair and genuine spare parts replacement are provided for quality failures not caused by human factors. Damage resulting from human error, overloading or failure to perform scheduled maintenance is subject to spare parts cost only; shipping fees are not included and the customer can complete the replacement. Wear parts such as brush bristles, tires, brake pads and hydraulic seals are excluded from the free warranty.

For warranty claims, please contact our after-sales team with the machine serial number and a description of the problem.

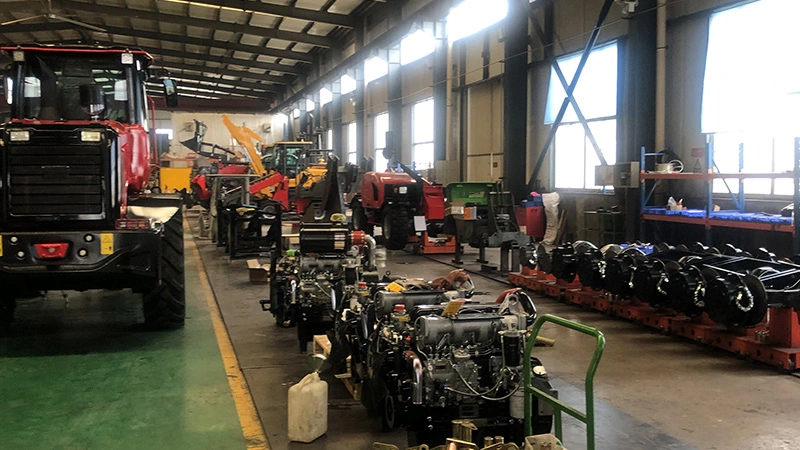

About Qingzhou Mingxu Supply Chain

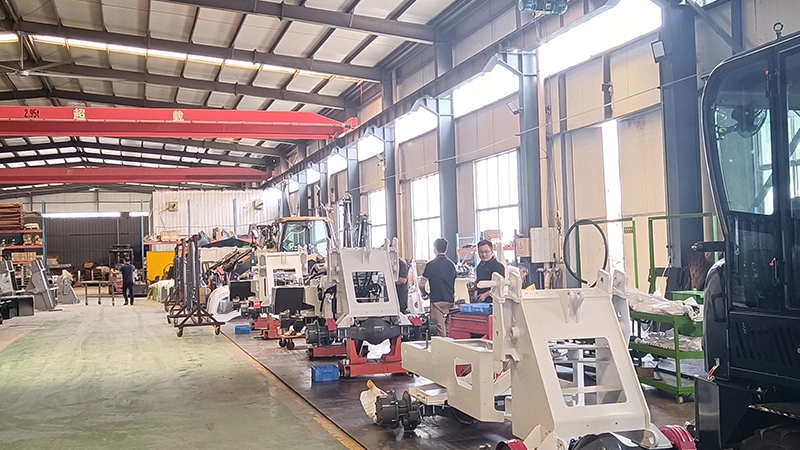

Qingzhou Mingxu Supply Chain Co., Ltd. is located in Qingzhou City, Shandong Province. The company holds qualifications in supply chain management, full-category machinery sales, and import/export. It works with selected machinery manufacturers in Shandong and manages product sourcing, quality coordination, export documentation and after-sales spare parts support. Our team has industry experience and can assist with product selection, custom requirements and technical questions. Factory visits can be arranged.

Frequently Asked Questions

How does the loader mounted snow sweeper handle compacted snow and thin ice?

The roller brush is equipped with a mix of nylon and steel wire bristles. The steel wire bristles cut through compacted snow and thin ice, while the nylon bristles sweep the loosened material off the road. The machine can clear snow up to a certain depth depending on brush pressure and operating speed. For thicker ice layers, an ice-breaking attachment may be required.

Is the machine suitable for use on all types of pavement?

The floating support wheels and mixed bristle material allow the brush to follow uneven surfaces while limiting damage to the pavement. However, the machine is designed for paved roads, concrete surfaces and asphalt. It should not be used on gravel or unpaved areas where stones could be thrown or the brush could be damaged.

What is the recommended operating temperature range for the snow sweeper?

The machine is designed to operate in low-temperature winter conditions. The hydraulic system uses low-temperature hydraulic oil, and the engine is equipped with a cold-start system. For reliable starting in temperatures below -20°C, we recommend using a block heater or storing the machine in a heated garage.

How often should the brush bristles be replaced?

Brush bristle wear depends on usage frequency, snow conditions and road surface roughness. Under normal municipal use, the bristles typically last one to two winter seasons. Check the brush head regularly and replace bristles when they are worn to half their original length. Replacement brushes are available from our spare parts department.

Can the snow sweeper be used for other tasks besides snow removal?

The front attachment can be replaced with a standard loader bucket for material handling tasks during non-winter months. The machine can also be fitted with other attachments such as a pallet fork or a brush for light sweeping. This allows the equipment to be used throughout the year, improving overall utilization.

What is the difference between this integrated machine and a loader with a separate snow sweeper attachment?

An integrated machine is assembled and tested at the factory with matching hydraulic and power systems. A separate attachment must be mounted on an existing loader, which may result in compatibility issues and reduced performance. The integrated design reduces installation time, improves reliability and provides a single warranty for the complete unit.
