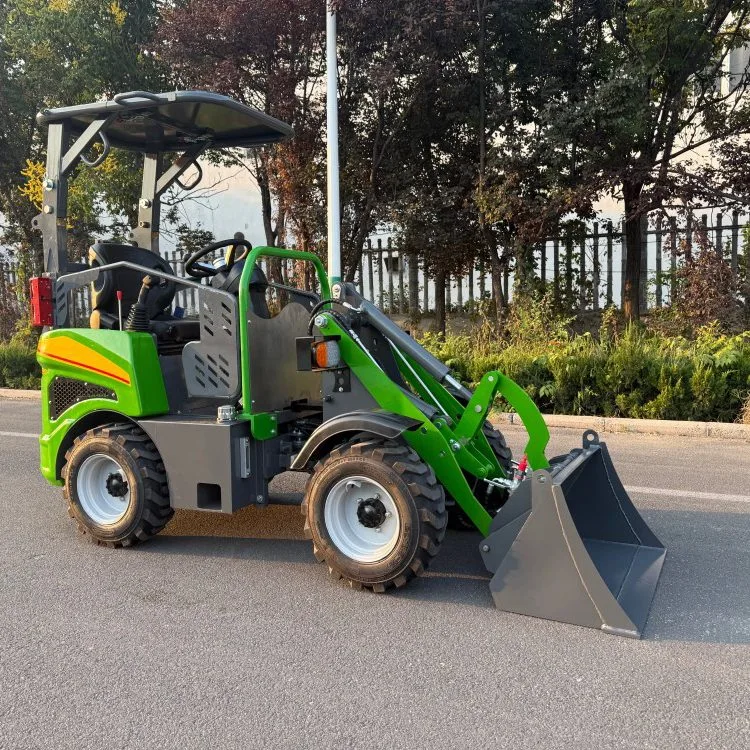

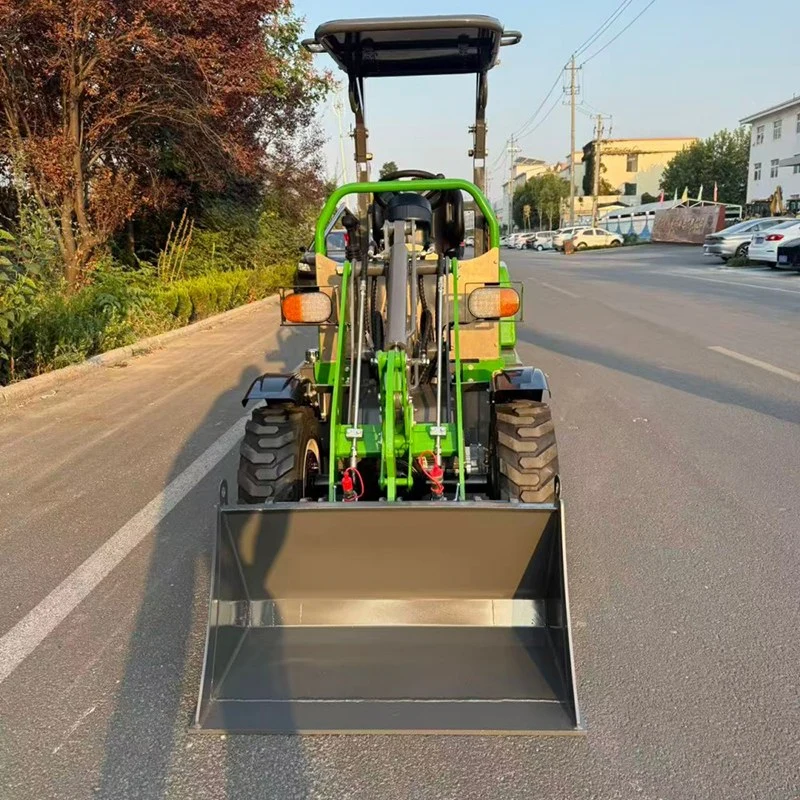

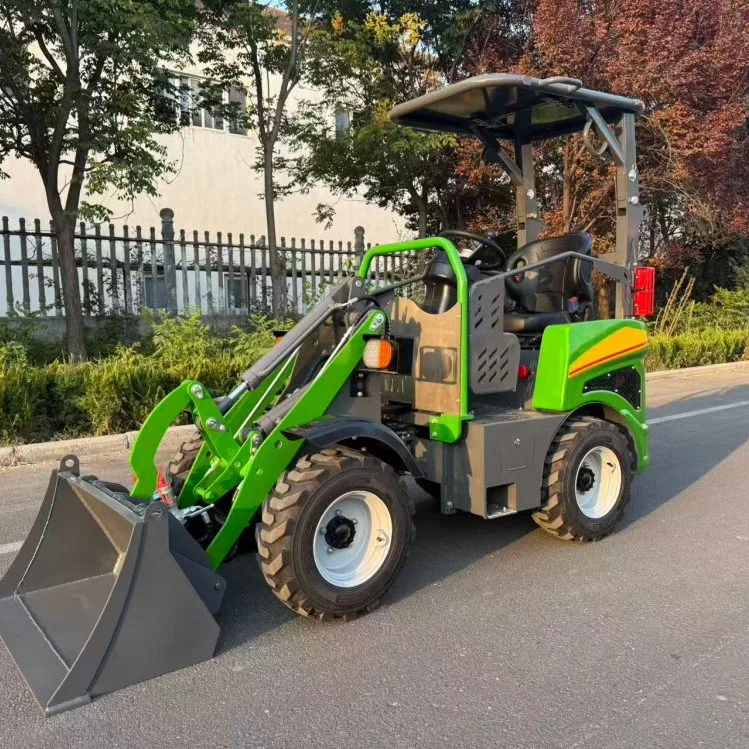

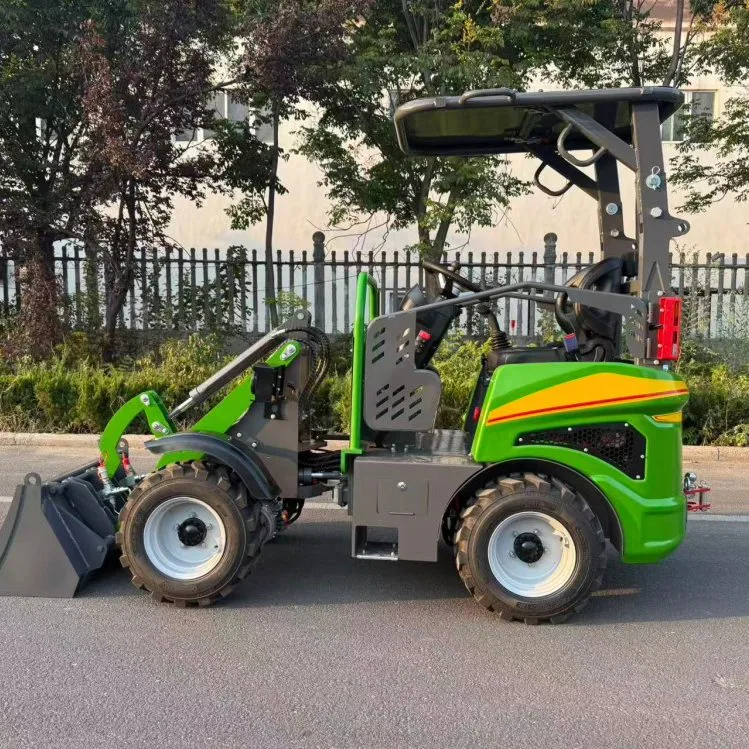

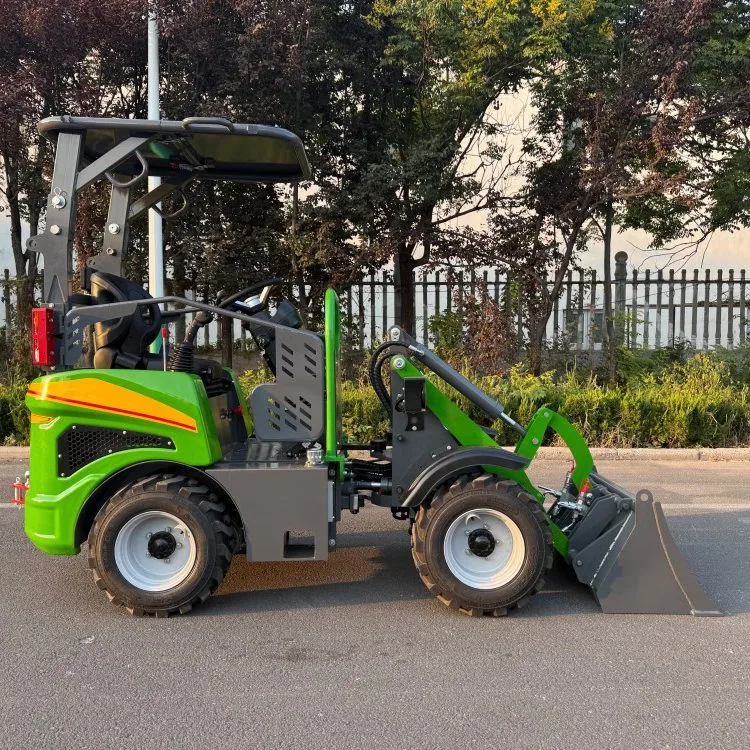

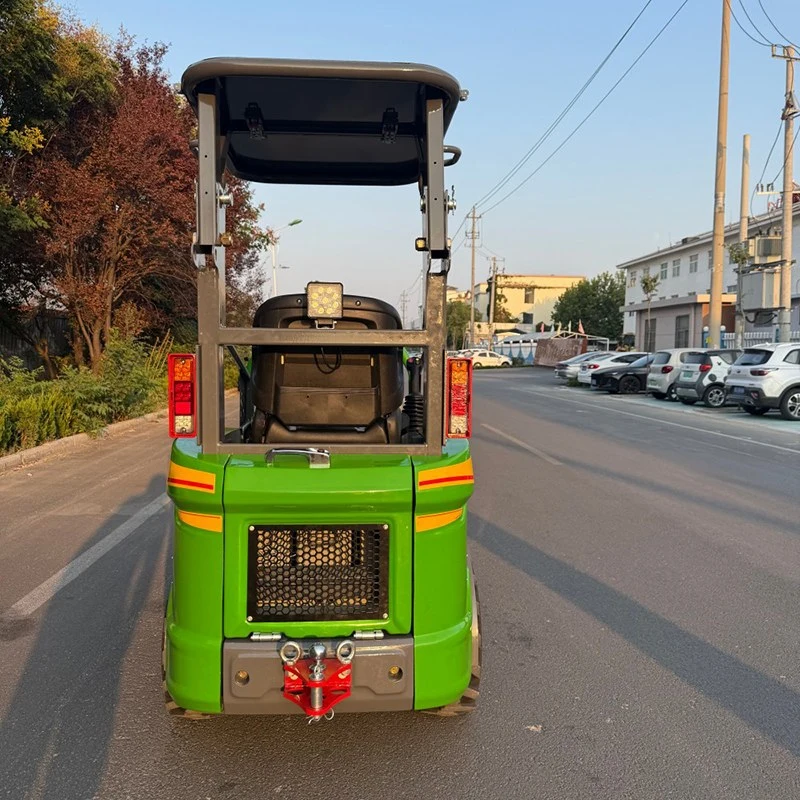

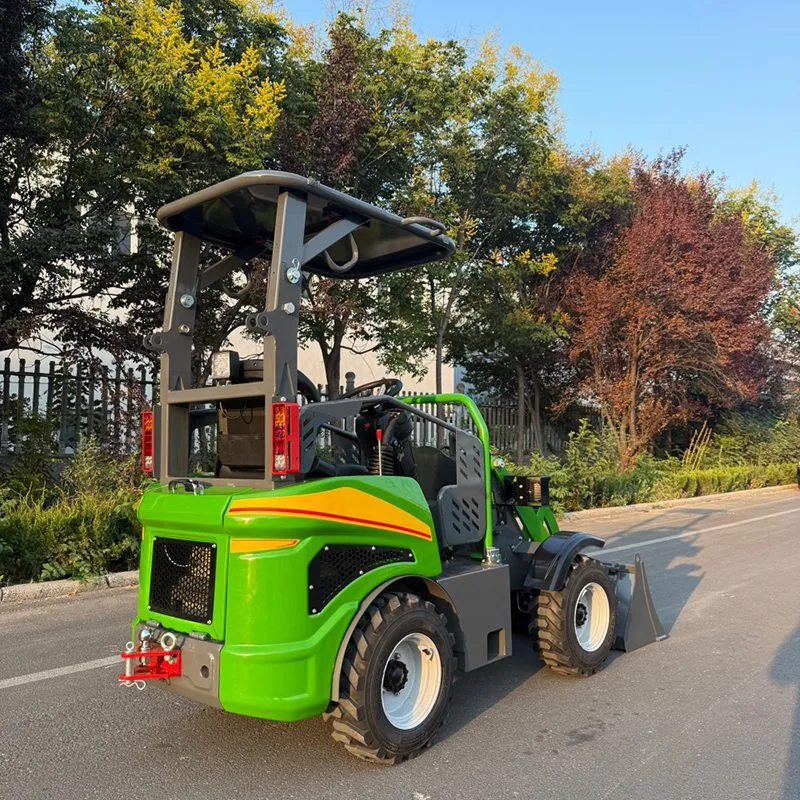

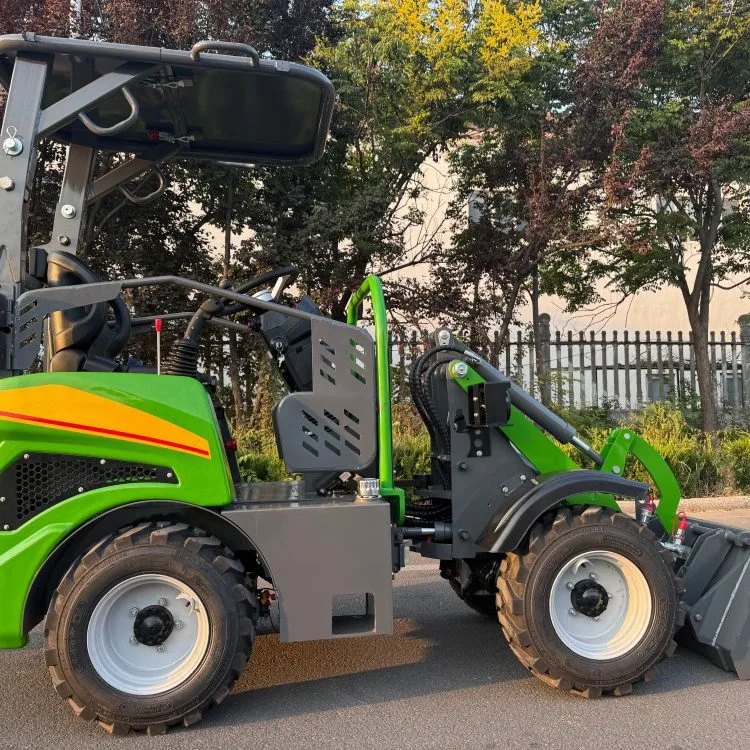

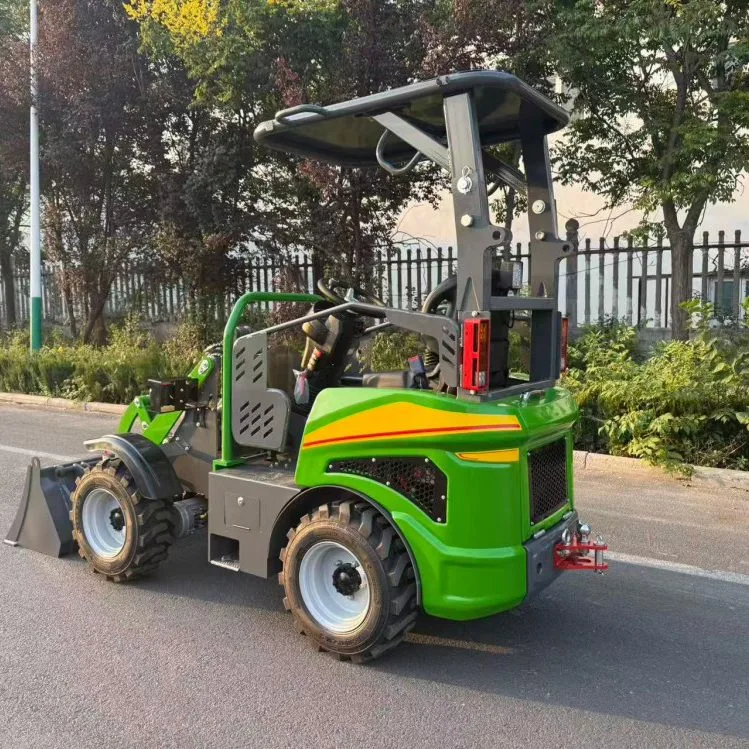

0.6 Ton Electric Mini Wheel Loader

The 0.6 Ton Electric Mini Wheel Loader from Mingxu is a battery-powered compact loading machine designed for material handling in confined spaces. Buyers who purchase this model usually need a compact electric loader for warehouses, farms, or small construction sites. It offers a rated load of 600 kg and a bucket capacity of 0.2 m³, and runs on a 60V electric drive system that eliminates exhaust emissions and reduces noise compared to diesel alternatives. The machine weighs 1,200 kg net and measures 3,140 mm in overall length with the bucket in ground position. This size allows it to work indoors and in narrow areas where full-size loaders cannot operate.

This loader uses a full hydraulic steering system and a rear axle with 7° swing, which helps maintain traction on uneven ground. The 60V power system drives both the hydraulic pump motor (3,000W) and two travel motors (1,500W each), giving the machine a maximum gradeability of 30°. For procurement teams comparing suppliers, Mingxu can provide price, order quantity, and delivery details on request.

Key Specifications

What the Numbers Mean in Practice

Battery and Working Time

Five 12V-120Ah lead-acid batteries in series provide 60V to the system. Rated working time is 3 to 4 hours under normal load. This is on the lower end compared to some competing 0.6-ton electric loaders that claim 4 to 5 hours with larger battery packs (72V/200Ah). For operations that need longer continuous runtime, planning around charging breaks or keeping a spare battery set is advisable.

The 3-hour discharge rating on the battery (120Ah at 3hr) means the stated capacity is based on a relatively fast discharge. In light-duty cycles, actual runtime may extend slightly beyond 4 hours.

Lifting and Dumping Geometry

With a lifting height of 2,175 mm and a dumping reach of 560 mm, this 0.6 Ton Electric Mini Wheel Loader can clear the side of most small trucks and feed hoppers. The dumping height of 1,260 mm is measured at the bucket's forward tilt; practical clearance depends on bucket angle and material. For loading into standard 1-ton dumpers or farm trailers, this geometry is adequate.

The bucket is 1,100 mm wide, matching the machine's overall width. This allows the loader to work in aisles and doorways that are roughly 1.2 m wide. The turning radius of 2,700 mm is slightly larger than some competitors in the 0.6-ton class (which can go as low as 2,520 mm), so very tight indoor corners may require a multi-point turn.

Steering and Stability

The full hydraulic steering system with two 50 mm bore cylinders and a 16 MPa system pressure provides responsive steering without a mechanical linkage. The rear axle swings 7°, which keeps all four wheels in contact with the ground when traversing uneven surfaces such as gravel yards or farm tracks.

Ground clearance is 160 mm. This is lower than some agricultural-oriented mini loaders that offer 200 mm or more, so the machine is better suited to relatively flat or graded surfaces. Muddy fields with deep ruts may cause the chassis to scrape.

Where This Loader Fits

Warehouses and logistics facilities. The zero-emission powertrain means it can operate indoors without ventilation. Its 1,100 mm width allows it to navigate standard warehouse aisles. Common tasks include moving palletized goods, loading/unloading small containers, and clearing floor debris.

Agricultural buildings. In livestock barns, the loader can handle manure, feed, and bedding material. The absence of exhaust fumes is important in enclosed animal housing. Its 600 kg capacity suits small square bales and bulk feed.

Municipal and landscaping work. For sidewalk repairs, small-scale snow clearing, and park maintenance, the compact size and low ground pressure reduce damage to paved surfaces.

Small construction sites. The 0.2 m³ bucket can move sand, gravel, and excavated soil in residential projects or renovation sites where larger equipment cannot access.

Comparing to a mini dumper: a wheel loader offers lift-and-dump capability that a dumper lacks. A dumper can only transport material, while this loader can scoop, lift, and place it. For tasks requiring vertical placement or truck loading, the loader has a clear functional advantage.

Systems Worth Understanding Before Purchase

Hydraulic System

The P5112 pump delivers 12 ml/r displacement at 3,000W. This is a modest flow rate suited to the loader's compact cylinders. The system runs at 16 MPa, which is within the normal range for small hydraulic equipment. Hydraulic oil tank capacity is 30 L. Oil changes should follow the manufacturer's interval, typically every 500 to 1,000 working hours depending on contamination levels.

Braking System

Both service and parking brakes are drum type with 250 mm drums. Drum brakes are simpler and less expensive to maintain than disc brakes, but they require periodic adjustment and can fade under repeated heavy braking. On a loader of this size and speed, drum brakes are adequate.

Battery Maintenance

The lead-acid batteries are the most maintenance-intensive component. For 12V-120Ah flooded lead-acid types, regular checks include:

Electrolyte level: Top up with distilled water every 2 to 4 weeks depending on temperature and charging frequency.

Terminal cleaning: Check for corrosion monthly; apply terminal protector.

Charging: Avoid deep discharges below 50% state of charge to extend cycle life. Charge in a ventilated area.

Equalization charge: Perform periodically to balance cell voltages.

If the machine will be used daily, a lithium battery option (if available) would reduce maintenance and extend cycle life, though at a higher upfront cost.

Comparison with Similar Models

The main trade-off is working time: with the standard 120Ah battery set, runtime is shorter than some competitors. If the loader will be used for more than 3 to 4 hours per shift, consider whether the duty cycle allows charging breaks or whether a larger battery configuration is available.

Purchasing Checklist

Before ordering, confirm the following with the supplier:

Battery configuration: Is the 120Ah / 5-battery setup standard, or can a larger capacity be specified?

Charger compatibility: What input voltage does the supplied charger require (110V / 220V / other)?

Attachments: Does the machine have a quick-hitch system for forks, grapples, or snow blades?

Spare parts availability: Are hydraulic cylinders, pump seals, and brake shoes readily available?

Documentation: Is an operation manual and parts catalog provided in the buyer's language?

Certification: Does the unit carry CE or other applicable certifications for the destination market?

Maintenance Schedule Summary
